Steel Merchant Coupling ASTM A865
Application:

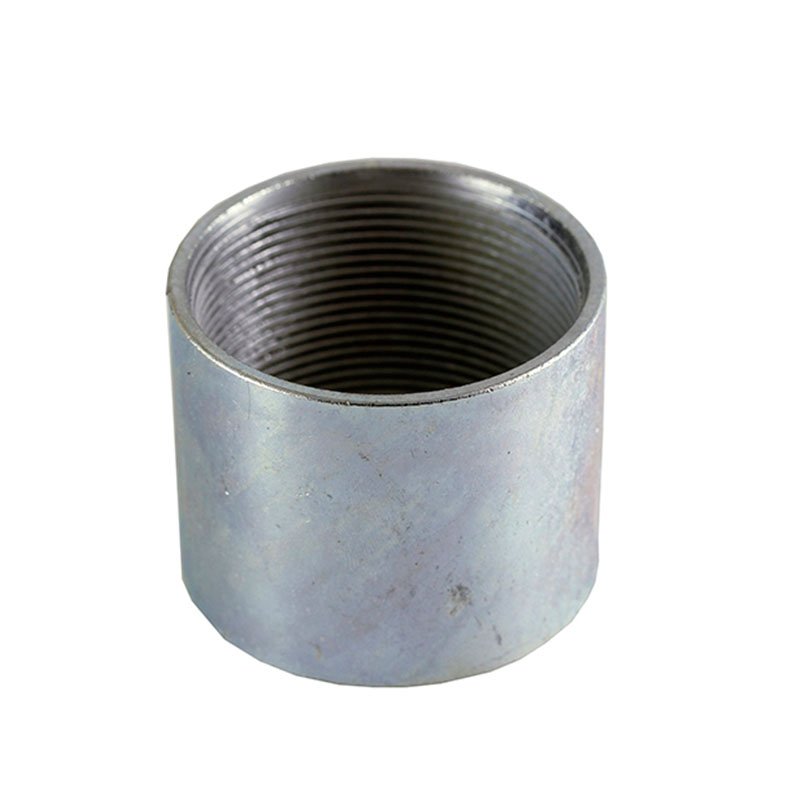

Steel Merchant Coupling ASTM A865
Steel Merchant Coupling with American Standard
Steel Pipe Nipple Extension Nipple Long Threaded Pipes BSP NPT Standard Sch40 Pipes Nipple Barrel Nipple Swage Hose Nipple King Nipple Extension Nipple
Material: Carbon Steel ASTM A865; Stainless Steel S304,S304L,S316,S316L
Dimensions: ASTM A865
Threads: ASME B1.20.1
Schedule: Standard or Extra-Strong
Testing Pressure:2.5MPa/Working Pressure:1.6MPa
Specification:
| 1/8 | 0.56 | 3/4 | NPSL |
| 1/4 | 0.72 | 1-1/8 | NPSL |
| 3/8 | 0.88 | 1-1/8 | NPSL |
| 1/2 | 1.06 | 1-1/2 | NPSL |
| 3/4 | 1.31 | 1-9/16 | NPSL |
| 1 | 1.58 | 1-15/16 | NPSL |
| 1-1/4 | 1.90 | 2 | NPSL |
| 1-1/2 | 2.20 | 2 | NPSL |
| 2 | 2.75 | 2-1/16 | NPSL |
| 2-1/2 | 3.25 | 3-1/16 | NPT |
| 3 | 4.00 | 3-3/16 | NPT |
| 3-1/2 | 4.63 | 3-5/16 | NPT |
| 4 | 5.00 | 3-7/16 | NPT |
| 5 | 6.30 | 3-11/16 | NPT |
| 6 | 7.39 | 3-15/16 | NPT |
*All dimensions are in mm unit(inch unit data sheet is also available upon request).
*Download the tolerances and materials for ASTM A865 steel merchant from Eathu "Price List and Techinical"
*Tolerances of dimensions are in conformance with ASME A865
Product Details

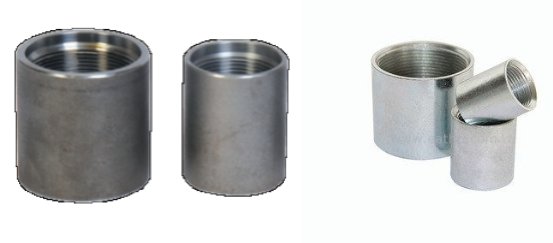

These couplings are widely used as linkages of pipes for the transportation of water, oil, air, gas, etc., There are two surface for steel merchant coupling ASTM A865, the one is black coating and another is hot dipped galvanized, the photos as below:
