Pipe Fittings

Specification:

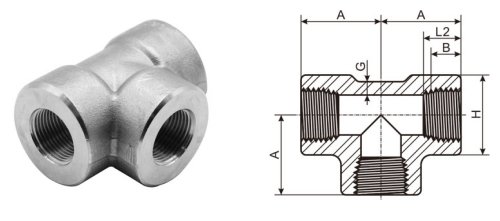

Threaded Tee Dimension

DNNom.Center to End

Center to End

Outside Diameter

Minimum Wall

Length Of

PipeElbow,Tee,Cross

45°Elbow

Of Band

Thickness

Thread

SizeA

C

H

G

Min.(1)


200030006000200030006000200030006000200030006000BL2
61/8"2121251717192222253.183.186.356.46.7
81/4"2125281719222225333.183.36.68.110.2
103/8"2528331922252533383.183.516.989.110.4
151/2"2833382225283338463.184.098.1510.913.6
203/4"3338442528333846563.184.328.5312.713.9
251"3844512833354656623.684.989.9314.717.3
321-1/4"4451603335435662753.895.2810.591718
401-1/2"5160643543446275844.015.5611.0717.818.4
502"60648343445275841024.277.1412.091919.2
652-1/2"768395525264921021215.617.6515.2923.628.9
803"86951066464791091211465.998.8416.6425.930.5
1004"1061141147979791461521526.5511.1818.6727.733

(1)Dimensions in Millimeters.

(2)Dimension B is minimum length of perfect thread. The length of useful thread(B plus threads with fully formed roots and flat crests)shall not be less than L2(effective length of   external thread)required by American National Standard for Pipe Threads (ANSI/ASME B1.20.1)

Product Details

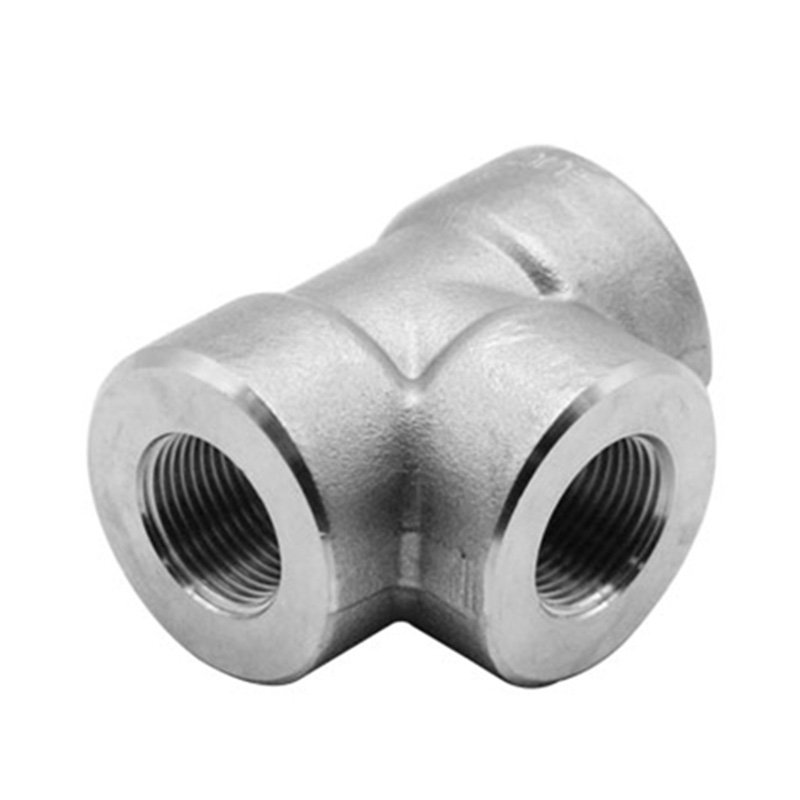

Threaded tee is divided into forging and casting in the production process. Forging refers to heating and forging with steel ingots or round bars, and then machining threads on a lathe. Casting refers to melting the ingot and pouring it into the tee. After the model is formed, it is formed after it has cooled down.
