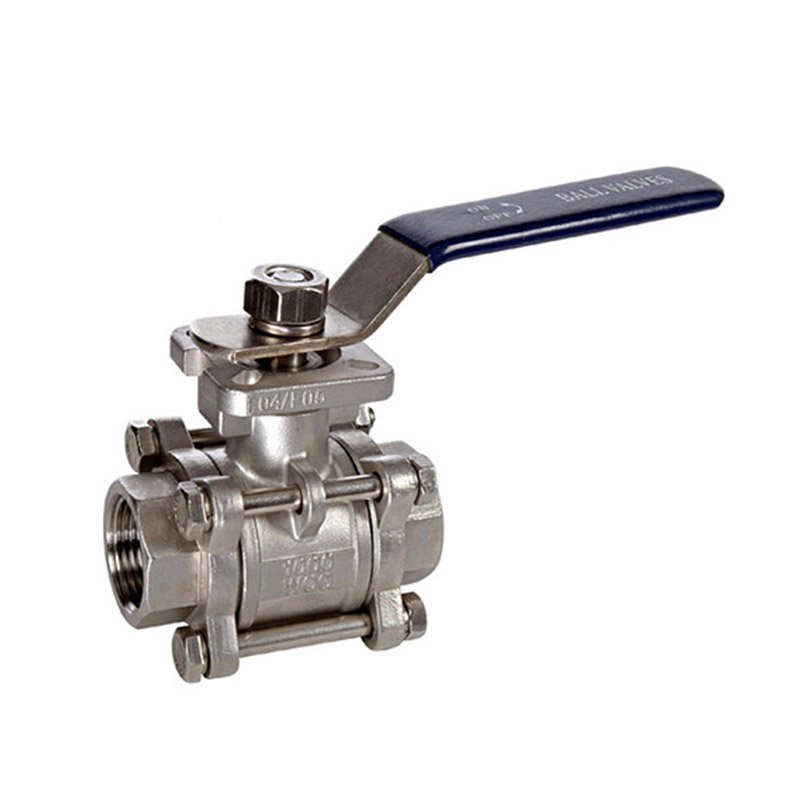

3PC Stainless Steel Threaded Ball Valve
Application:
3PC Stainless Steel Threaded Ball Valve
Size:1/4”-4”
Pressure:1.6Mpa-6.4Mpa
Body Materials:Stainless Steel ,CF8,CF8M
Ball Materials:Stainless Steel ,CF8,CF8M
Seal Materials:PTFE
Connection:thread (BSP,BSPT,NPT)
Drive type:handle
Structure type:floating
Share to:
Specification:
Main part material
| NO. | PAPTS | MATERIAL |
| 1 | BODY | CF8M |
| 2 | SEAL | PTFE |
| 3 | CAP | CF8M |
| 4 | BALL | SS316 |
| 5 | STEM | SS316 |
| 6 | NUT | SS304 |
| 7 | HANDLE | SS304 |
| 8 | PACKING | PTFE |

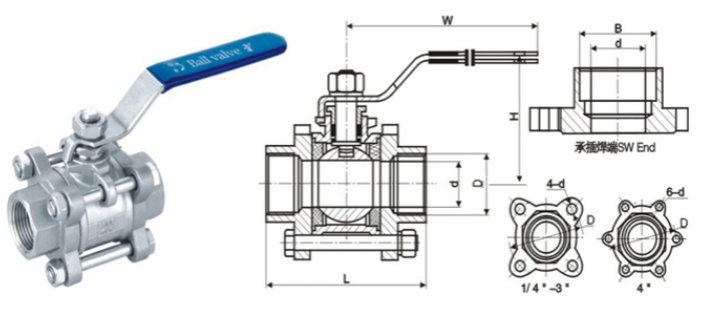

Dimensions
| SIZE | DN | d | L | H | W |
| 1/4’’ | 6 | 10 | 55 | 42 | 95 |
| 3/8’’ | 10 | 12 | 55 | 42 | 95 |
| 1/2’’ | 15 | 15 | 62 | 51 | 108 |
| 3/4’’ | 20 | 20 | 75 | 58 | 115 |
| 1’’ | 25 | 25 | 85 | 77 | 135 |
| 1 1/4’’ | 32 | 32 | 102 | 83 | 150 |
| 1 1/2’’ | 40 | 38 | 108 | 97 | 175 |
| 2’’ | 50 | 50 | 124 | 106 | 190 |
| 2 1/2’’ | 65 | 65 | 163 | 122 | 220 |
| 3’’ | 80 | 80 | 185 | 133 | 250 |
| 4’’ | 100 | 100 | 225 | 162 | 320 |
