Pipe Fittings

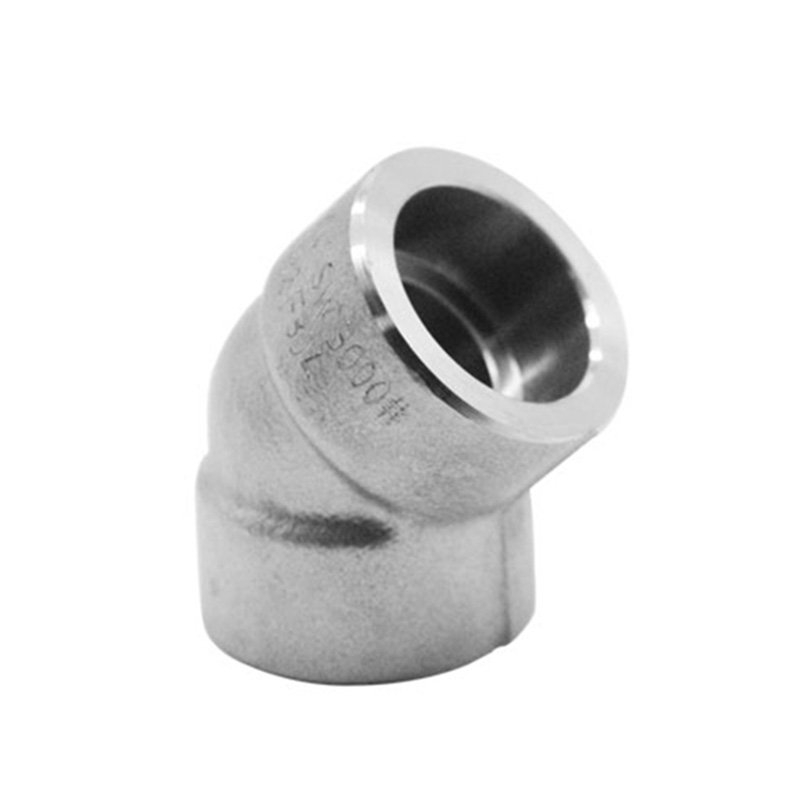

Socket Weld 45 Degree Elbow

Application:

Socket Weld Elbow:In pipeline system, the elbow is to change the direction of the pipeline. According to the view points, there are 45 degree, 90 degree, 180 degree three most commonly used types, according to the requirements of the project ,also includes 60 degree and other abnormal Angle elbows .Socket weld elbow, mainly manufactured by round steel or steel ingot .Heat the steel ingot, put them in mold cavities,then forging to blanks by forging machine, and then after the lathe machining forming a high pressure elbow pipe fitting.

Specification:

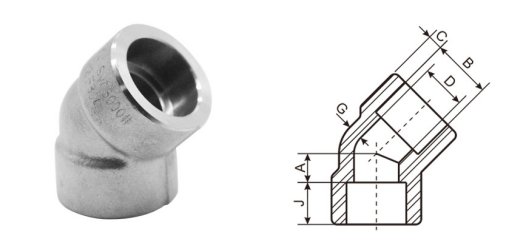

Socket Weld 45 Degree Elbow Dimension

DN	Nom.	Center to Bottom of Socket-A						Socket	Bore Dia.Of Fitting			Socket Wall Thickness（2）						Body Wall Thickness			Depth
	Pipe	Center to Bottom of Socket-A						Bore	D			C						G			of
	Size	90°Elbows			45°Elbows			Dia.				Class Designation						Class Designation			Socket
		Class Designation			Class Designation			B	Class Designation			3000		6000		9000		3000	6000	9000	Min.
		3000	6000	9000	3000	6000	9000		3000	6000	9000	Ave.	Min.	Ave.	Min.	Ave.	Min.	Min.	Min.	Min.	J
6	1/8"	11	11	---	8	8	---	10.8	6.9	4	---	3.18	3.18	3.96	3.43	---	---	2.41	3.15	---	9.5
8	1/4"	11	13.5	---	8	8	---	14.2	9.3	6.4	---	3.78	3.3	4.6	4.01	---	---	3.02	3.68	---	9.5
10	3/8"	13.5	15.5	---	8	11	---	17.6	12.6	9.2	---	4.01	3.5	5.03	4.37	---	---	3.2	4.01	---	9.5
15	1/2"	15.5	19	25.5	11	12.5	15.5	21.8	15.8	11.8	6.4	4.67	4.09	5.97	5.18	9.35	8.18	3.73	4.78	7.47	9.5
20	3/4"	19	22.5	28.5	13	14	19	27.2	21	15.6	11.1	4.9	4.27	6.96	6.04	9.78	8.56	3.91	5.56	7.82	12.5
25	1"	22.5	27	32	14	17.5	20.5	33.9	26.7	20.7	15.2	5.69	4.98	7.92	6.93	11.38	9.96	4.55	6.35	9.09	12.5
32	1-1/4"	27	32	35	17.5	20.5	22.5	42.7	35.1	29.5	22.8	6.07	5.28	7.92	6.93	12.14	10.62	4.85	6.35	9.7	12.5
40	1-1/2"	32	38	38	20.5	25.5	25.5	48.8	40.9	34	28	6.35	5.54	8.92	7.8	12.7	11.12	5.08	7.14	10.15	12.5
50	2"	38	41	54	25.5	28.5	28.5	61.2	52.5	42.9	38.2	6.93	6.04	10.92	9.5	13.84	12.12	5.54	8.74	11.07	16
65	2-1/2"	41	---	---	28.5	---	---	73.9	62.7	---	---	8.76	7.67	---	---	---	---	7.01	---	---	16
80	3"	57	---	---	32	---	---	89.8	78	---	---	9.52	8.3	---	---	---	---	7.62	---	---	16
100	4"	66.5	---	---	41	---	---	115.2	102.3	---	---	10.69	9.35	---	---	---	---	8.56	---	---	16

(1) Dimensions in Millimeters.

(2) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.

(3) Upper and lower values for each size are the respective maximum and minimum dimensions.
