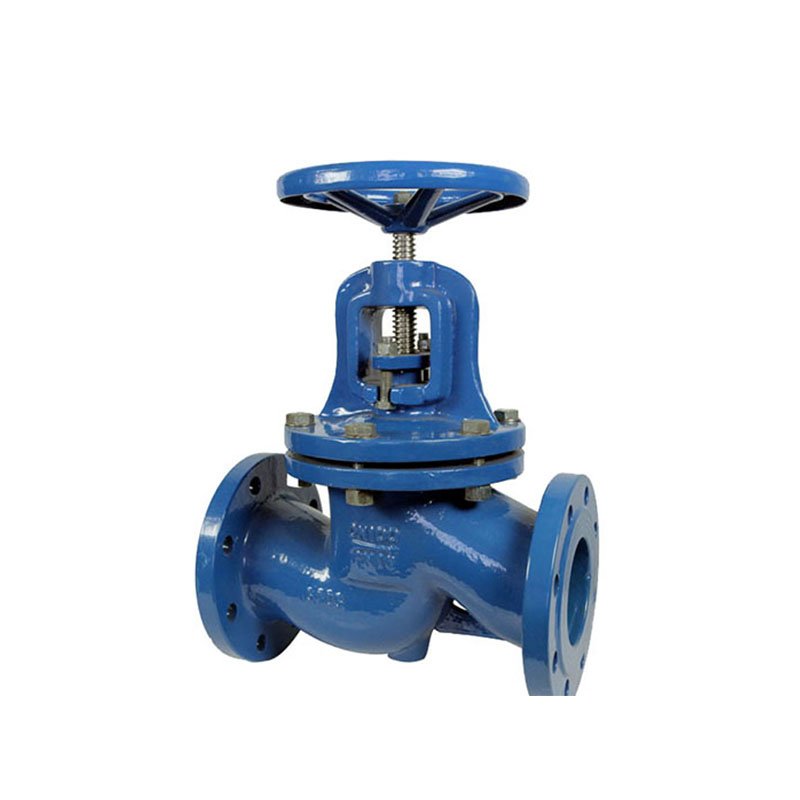

BS5152 Cast Iron Globe Valve

BS5152 Cast Iron Globe Valve

Design and Manufacture Conform to MSS SP-85

Flange dimensions Conform to ANSI B16.1

Face to Face dimensions Conform to ANSI B16.10

Testing Conform to MSS SP-85

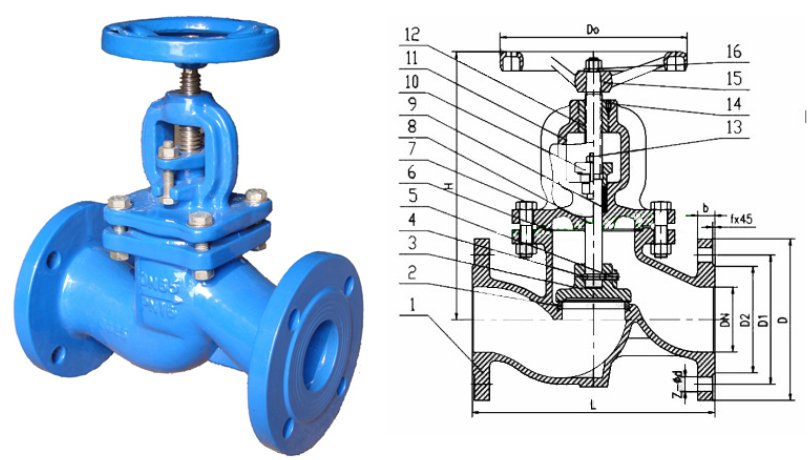

Parts and Materials of BS5152 Cast Iron Globe Valve:

MATERIALS
ITEM	PARTS NAME	MATERIAL
1	BODY	CAST IRON
2	SEAT RING	BRASS/STAINLESS STEEL
3	DISC	CAST IRON+BRASS/STAINLESS STEEL
4	STEEL BALL
5	BOLT	CARBON STEEL
6	GASKET	GRAPHITE
7	BOLT NUT	CARBON STEEL
8	STEM	STAINLESS STEEL
9	PACKING	GRAPHITE
10	GLAND	CAST IRON
11	BONNET	CAST IRON
12	STEM NUT	BRASS
13	BOLT NUT	CARBON STEEL
14	BOLT	CARBON STEEL
15	WHEEL	CAST IRON
16	NUT GASKET	CARBON STEEL

Dimensions (mm) of BS5152 Cast Iron Globe Valve:
DN	L	D	D1	D2	b	Z-∮d	f	H	DO
15	130	95	65	47	14	4-14	2	170	80
20	150	105	75	58	16	4-14	2	170	80
25	160	115	85	68	16	4-14	2	190	100
32	180	140	100	78	18	4-18	2	210	120
40	200	150	110	88	18	4-18	3	220	120
50	230	165	125	102	20	4-18	3	235	140
65	290	185	145	122	20	4-18	3	275	160
80	310	200	160	138	22	8-18	3	335	240
100	350	220	180	158	24	8-18	3	375	240
125	400	250	210	188	26	8-18	3	425	280
150	480	285	240	212	26	8-23	3	490	320
200	600	340	295	268	30	12-23	3	620	360
250	730	405	355	320	32	12-27	3	705	400
