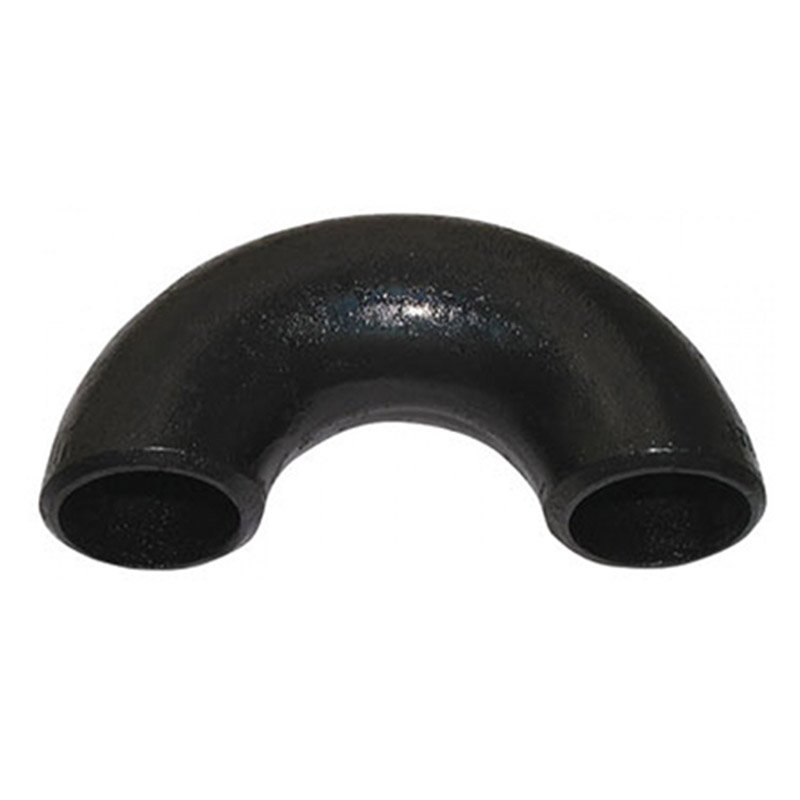

180° Return elbow LR

Application:

Butt weld 180 return elbow SR is a kind of butt weld fittings.

There are two types of butt weld 180 elbow, Butt weld 180 long radius elbow(180 LR elbow) and Butt weld 180 short radius elbow(180 SR elbow).The difference between them is the center to end distance.LR elbow center to end is 1.5 times of norminal pipe size,SR elbow center to end is equal to the norminal pipe size. Buttweld elbows below 24 inches are produced by cutting, heating and bending seam or seamless steel pipes; pipe elbows of larger sizes are made from welded pipes or steel plates.

Specification:

ASME B16.9: 180D Return S/R

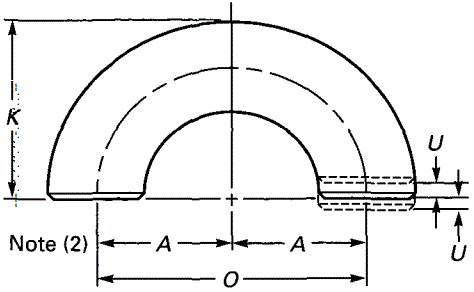

Technical Drawing of 180D Return S/R Buttwelding(ASME B16.9)

Dimensions of 180D Return Short Radius BW(ASME B16.9)

Norminal Pipe	Outside	Center to Center	Back to Face
Size (NPS)	Diameter	O	K
1"	33.4	51	41
1-1/4"	42.2	64	52
1-1/2"	48.3	76	62
2"	60.3	102	81
2-1/2"	73	127	100
3"	88.9	152	121
3-1/2"	101.6	178	140
4"	114.3	203	159
5"	141.3	254	197
6"	168.3	305	237
8"	219.1	406	313
10"	273	508	391
12"	323.8	610	467
14"	355.6	711	533
16"	406.4	813	610
18"	457	914	686
20"	508	1016	762
22"	559	1118	838
24"	610	1219	914

*All dimensions are in mm unit(inch unit data sheet is also available upon request).

*Check the tolerances and materials for butt welding pipe fittings from "Price List and Techinical"

*Tolerances of dimensions are in conformance with ASME B16.9

ASME B16.9: 180D Return L/R

1. Technical Drawing of 180D Return L/R Buttwelding(ASME B16.9)

2. Dimensions of 180D Return Long Radius BW(ASME B16.9)

Norminal Pipe	Outside Diameter	Center to Center	Back to Face
Size (NPS)	Outside Diameter	O	K
1/2	21.3	76	48
3/4	26.7	76	51
1	33.4	76	56
1 1/4	42.2	95	70
1 1/2	48.3	114	83
2	60.3	152	106
2 1/2	73	190	132
3	88.9	229	159
3 1/2	101.6	267	184
4	114.3	305	210
5	141.3	381	262
6	168.3	457	313
8	219.1	610	414
10	273	762	518
12	323.8	914	619
14	355.6	1067	711
16	406.4	1219	813
18	457	1372	914
20	508	1524	1016
22	559	1676	1118
24	610	1829	1219

*All dimensions are in mm unit(inch unit data sheet is also available upon request).

*Click to view the selection of materials for butt weld pipe fittings.

*Tolerances of dimensions are in conformance with ASME B16.9

Product Details

Size: 1/2"-80"/DN15-DN2000

Technical: Forged and pushing

Material: Carbon Steel, Stainless Steel, Alloy Steel

Carbon Steel:ASTM, A234WPB, A234WPC, A420WPL6, Q235,10#, A3, Q235A, 20G, 16Mn, DIN St37, St45.8, St52.4, St.35.8, St.35.8.

Stainless Steel:1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti,00Cr17Ni14Mo2 304 304L 316 316L

Alloy Steel:16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70

Standard: ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97

Model: 45°/ 90°/180 LR/SR Elbow, Reducers, Tee, Bends, Cap, Cross.

Type: Seam Or Seamless

End: beveled end

Surface: Black Paint/Rust-proof Oil/Hot Dipped Galvanized

Wall Thickness: SCH10/10S, SCH20/20S, STD, SCH40/40S, XS, SCH80,SCH100, SCH120, SCH140, SCH160, XXS etc.(for ANSI),SGP(for JIS)

Elbow Angles: 30/45/60/90/180°

Connection: Welding

Shape:Equal, Reducing

Certificate: ISO -9001:2000, API, CCS

Application:Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc

Packing: Plywood Pallets/ Wooden Case Or As Per your Specification

MOQ: to be negotiated.

Sample: Available

Price: >>Get newest price list(超链接至price list and technical)

Service: Customized OEM

Pakage: wooden case & pallet

Payment term: T/T or L/C

Delivery:7-30days according to order quantity.
