Reducing 90°elbow LR

Application:

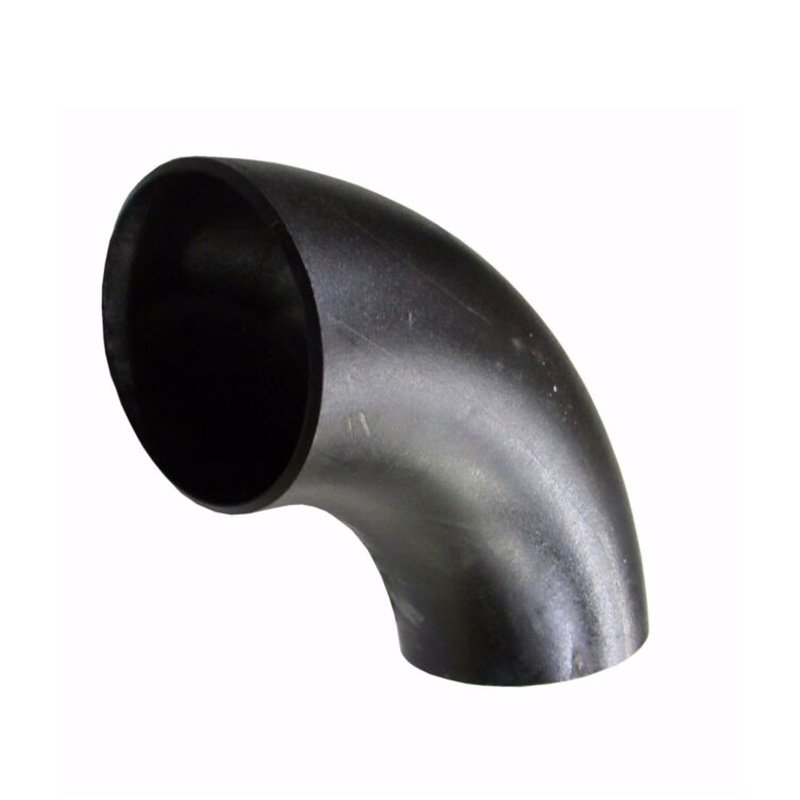

Butt weld long radius 90° Reducing Elbow LR is a kind of butt weld fittings.

There are two types of butt weld elbow, Butt weld 90 long radius elbow(90 LR elbow) and Butt weld 90 short radius elbow(90 SR elbow).The difference between them is the center to end distance.LR elbow center to end is 1.5 times of norminal pipe size,SR elbow center to end is equal to the norminal pipe size. Buttweld elbows below 24 inches are produced by cutting, heating and bending seam or seamless steel pipes; pipe elbows of larger sizes are made from welded pipes or steel plates.

Butt welding fittings are components used to connect pipes by welding.There are virous types of butt welding pipe fittings:elbow,tee,cross,reducer and cap etc.,

The key specifications for buttweld fittings are the ASME B16.9 (carbon and alloy fittings) and the MSS SP 43 (that integrates ASME B16.9 for stainless steel, duplex, and nickel alloy BW fittings).

Butt welding fittings can be used at high pressure piping connections.They are strong and have a long service life.Besides they are rather cheap to buy and deploy.

Specification:

ASME B16.9: Reducing Elbow 90D L/R

Technical Drawing of Reducing Elbow 90D L/R Buttwelding(ASME B16.9)

Dimensions of 90D Long Radius Reducing Elbow BW(ASME B16.9)

NPS	Outside Diameter		Center to End	NPS	Outside Diameter		Center to End
NPS	Large end	Small end	A	NPS	Large end	Small end	A
2×1 1/2	60.3	48.3	76	10×8	273.0	219.1	381
2×1 1/4	60.3	42.2	76	10×6	273.0	168.3	381
2×1	60.3	33.4	76	10×5	273.0	141.3	381
2 1/2×2	73.0	60.3	95	12×10	323.8	273	457
2 1/2×1 1/2	73.0	48.3	95	12×8	323.8	219.1	457
2 1/2×1 1/4	73.0	42.2	95	12×6	323.8	168.3	457
3×2 1/2	88.9	73.0	114	14×12	355.6	323.8	533
3×2	88.9	60.3	114	14×10	355.6	273	533
3×1 1/2	88.9	48.3	114	14×8	355.6	219.1	533
3 1/2×3	101.6	88.9	133	16×14	406.4	355.6	610
3 1/2×2 1/2	101.6	73.0	133	16×12	406.4	323.8	610
3 1/2×2	101.6	60.3	133	16×10	406.4	273	610
4×3 1/2	114.3	101.6	152	18×16	457	406.4	686
4×3	114.3	88.9	152	18×14	457	355.6	686
4×2 1/2	114.3	73.0	152	18×12	457	323.8	686
4×2	114.3	60.3	152	18×10	457	273	686
5×4	141.3	114.3	190	20×18	508	457	762
5×3 1/2	141.3	101.6	190	20×16	508	406.4	762
5×3	141.3	88.9	190	20×14	508	355.6	762
5×2 1/2	141.3	73.0	190	20×12	508	323.8	762
6×5	168.3	141.3	229	20×10	508	273	762
6×4	168.3	114.3	229	24×22	610	559	914
6×3 1/2	168.3	101.6	229	24×20	610	508	914
6×3	168.3	88.9	229	24×18	610	457	914
8×6	219.1	168.3	305	24×16	610	406.4	914
8×5	219.1	141.3	305	24×14	610	355.6	914
8×4	219.1	114.3	305	24×12	610	323.8	914

*All dimensions are in mm unit(inch unit data sheet is also available upon request).

*Check the tolerances and materials for butt welding pipe fittings from "Price List and Techinical"

*Tolerances of dimensions are in conformance with ASME B16.9

Product Details

Size: 1/2"-80"/DN15-DN2000

Technical: Forged and pushing

Material: Carbon Steel, Stainless Steel, Alloy Steel

Carbon Steel:ASTM, A234WPB, A234WPC, A420WPL6, Q235,10#, A3, Q235A, 20G, 16Mn, DIN St37, St45.8, St52.4, St.35.8, St.35.8.

Stainless Steel:1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti,00Cr17Ni14Mo2 304 304L 316 316L

Alloy Steel:16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70

Standard: ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97

Model: 45°/ 90°/180 LR/SR Elbow, Reducers, Tee, Bends, Cap, Cross.

Type: Seam Or Seamless

End: beveled end

Surface: Black Paint/Rust-proof Oil/Hot Dipped Galvanized

Wall Thickness: SCH10/10S, SCH20/20S, STD, SCH40/40S, XS, SCH80,SCH100, SCH120, SCH140, SCH160, XXS etc.(for ANSI),SGP(for JIS)

Elbow Angles: 30/45/60/90/180°

Connection: Welding

Shape:Equal, Reducing

Certificate: ISO -9001:2000, API, CCS

Application:Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc

Packing: Plywood Pallets/ Wooden Case Or As Per your Specification

MOQ: to be negotiated.

Sample: Available

Price: >>Get newest price list(price list and technical)

Service: Customized OEM

Pakage: wooden case & pallet

Payment term: T/T or L/C

Delivery:7-30days according to order quantity.

The 90-degree reducing elbow is also called the 90-degree reducing elbow, which is used to connect two steel pipes of different sizes for steering. The usual production process is to cut a 90-degree elbow blank with a standard pipe diameter, and then deform it in the mold with a hydraulic press, so that the two ends of the elbow have different sizes. After hydroforming, a shaping machine is used for shaping. 90-degree reducing elbow processing is a metal cold deformation processing method, it is one of the main methods of metal plastic processing (or pressure processing), and also belongs to the material forming engineering technology.

The advantages of the 90-degree reducing elbow manufacturing process are mainly manifested in the following aspects: 　　

1. Need to use elbow blank as raw material, no need to reopen the mold, saving mold cost and time, and at the same time, it can accept small batch orders from customers.

2. The blank of the reducing elbow is the elbow blank, so the workmanship is simple, the accuracy is easy to ensure, and the assembly and welding are convenient.

3. Due to the above two reasons, the manufacturing cycle can be shortened, and the cost of producing reducing elbows is greatly reduced.

As a high-quality pipe flange exporter in northern China, EATHU has a good price and quality in 90-degree reducing elbow products, and can produce 90-degree reducing elbows based on a small amount of project need. The quality and price of 90-degree reducing elbows are advantageous, please contact EATHU sales department to get the price list.
