Flange End Y Strainer
Application:
Ductile Iron Flange Strainers feature cast iron body with stainless steel mesh insert (perforated sheet) with the aperture size of 1.25-1.5 mm. The whole is equipped with a drain plug in the lower part, which allows easy disassembly during the removal of contamination
Product Details

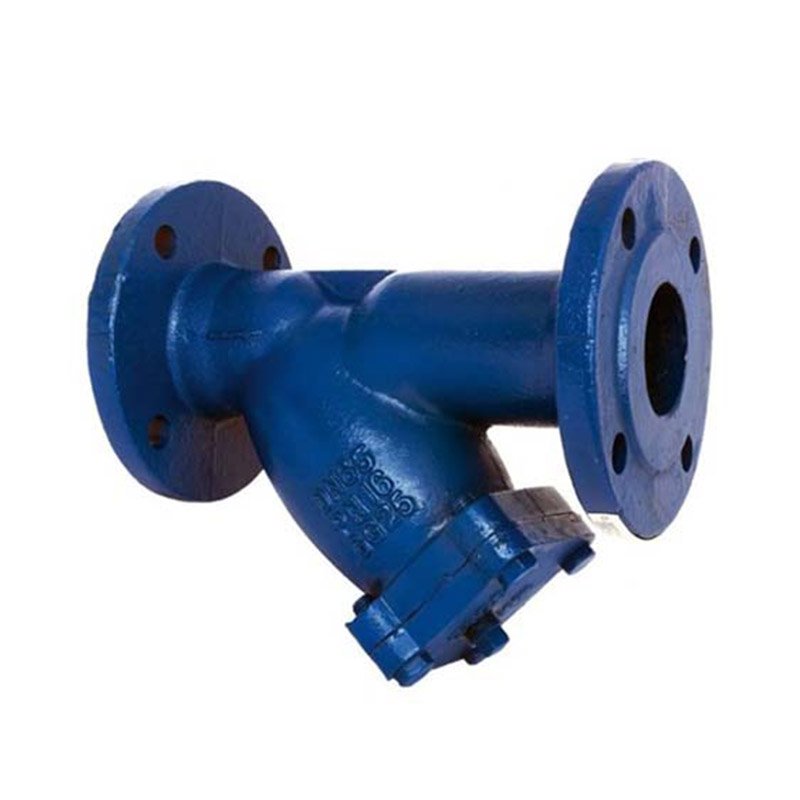

Ductile Iron Flange Strainer
Ductile Iron Flange Strainers feature ductile iron body with stainless steel mesh insert (perforated sheet) with the aperture size of 1.25-1.5 mm.
The whole is equipped with a drain plug in the lower part, which allows easy disassembly during the removal of contamination in the pipeline.
The position of the filter allows capturing contamination during unrestricted flow of the medium.
The strainer insert chamber is fitted with a cast iron cover sealed with a rubber sealing O-ring or graphite on a steel ring and bolted to the body using hex.
Body | Ductile Iron |
Cover | Ductile Iron |
Mesh insert | Stainless steel PN-EN 10088-1:2014 |
Seal | Graphite CrNiSt |
Screw | PN-EN ISO 4016:2011 |
Drain plug | Malleable Ductile Iron |
Application:
Operating temp. up +120°C, 70°C for EPDM.
Cast iron flange strainer is for drinking and technological water systems.
It is recommended to install the strainer horizontally at the lowest point of the pipeline or at bending points.
In order to ensure full operational functionality, it is recommended to rinse the strainers with clean water periodically (twice per year) or more frequently, depending on the medium contamination level.
Packing and shipping:
1. DHL, UPS, TNT, EMS for samples, door-to-door delivery.
2. By Air or by Sea for batch goods or as per your requirement.
3. Delivery Time: 3-7 days for samples; 15-45days for batch goods(according to the actual situation).
4. Inside packing: poly bag or blister bag
5. Outer packing: plywood box
