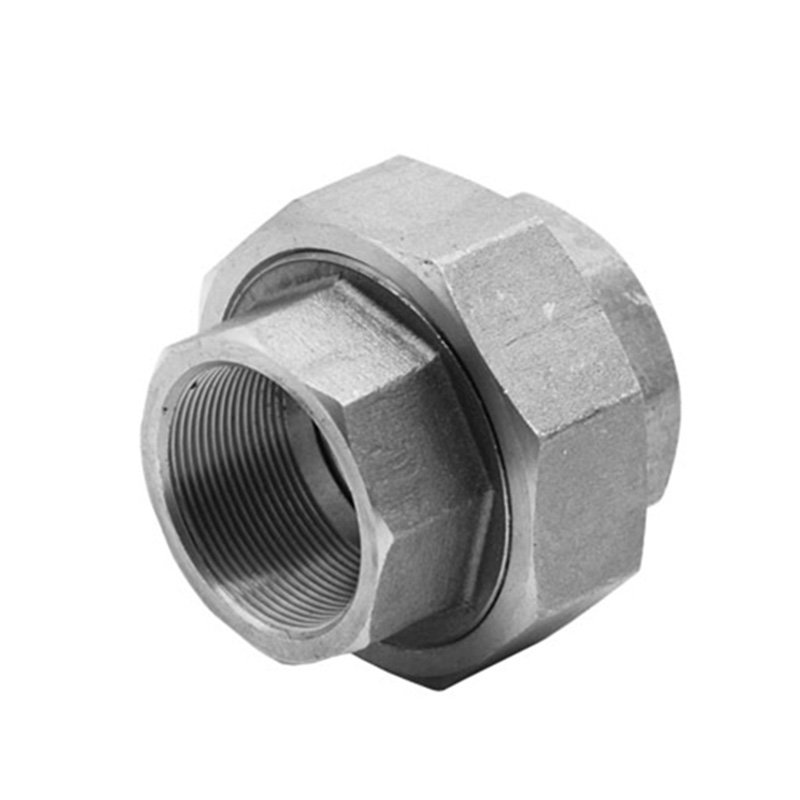

Threaded Union
Application:
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
Share to:
Specification:

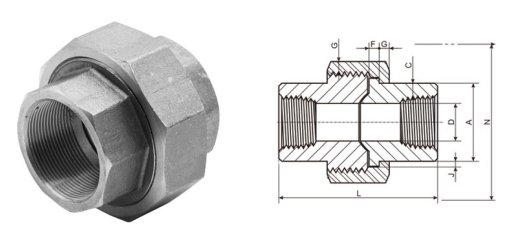

Threaded Union Dimension
| Nom. | Pipe End | Wall | Water | Male | Nut | Threads | Bearing | Length | Clear |
| Pipe | Way Bore | Flange | Per | Assem. | Assem. | ||||
| Size | 25.4mm | Nom. | Nut | ||||||
| Min.A | Min.C | D | Min.F | Min.G | Max.H | Min.J | L | N | |
| 1/8" | 14.7 | 2.41 | 8.43 | 3.18 | 3.18 | 16 | 1.24 | 41.4 | 50.8 |
| 6.43 | |||||||||
| 1/4" | 19 | 3.02 | 11.13 | 3.18 | 3.18 | 16 | 1.24 | 41.4 | 50.8 |
| 9.45 | |||||||||
| 3/8" | 22.9 | 3.2 | 14.27 | 3.43 | 3.43 | 14 | 1.37 | 46 | 55.9 |
| 13.51 | |||||||||
| 1/2" | 27.7 | 3.73 | 17.86 | 3.68 | 3.68 | 14 | 1.5 | 49 | 58.4 |
| 17.07 | |||||||||
| 3/4" | 33.5 | 3.91 | 23.01 | 4.06 | 4.06 | 11 | 1.68 | 56.9 | 66 |
| 21.39 | |||||||||
| 1" | 41.4 | 4.55 | 28.98 | 4.57 | 4.45 | 11 | 1.85 | 62 | 78.7 |
| 27.74 | |||||||||
| 1-1/4" | 50.5 | 4.85 | 37.69 | 5.33 | 5.21 | 11 | 2.13 | 71.1 | 94 |
| 35.36 | |||||||||
| 1-1/2" | 57.2 | 5.08 | 43.54 | 5.84 | 5.59 | 10 | 2.31 | 76.5 | 111.8 |
| 41.2 | |||||||||
| 2" | 70.1 | 5.54 | 55.58 | 6.6 | 6.35 | 10 | 2.69 | 86.1 | 132.1 |
| 52.12 | |||||||||
| 2-1/2" | 85.3 | 7.01 | 66.27 | 7.49 | 7.11 | 8 | 3.07 | 102.4 | 149.9 |
| 64.31 | |||||||||
| 3" | 102.4 | 7.62 | 88.25 | 8.26 | 8 | 8 | 3.53 | 109 | 175.3 |
| 77.27 |
(1) Dimensions in Millimeters.
(2) Upper and lower values for each size are the respective maximum and minimum dimensions.
