Stainless steel camlock-449

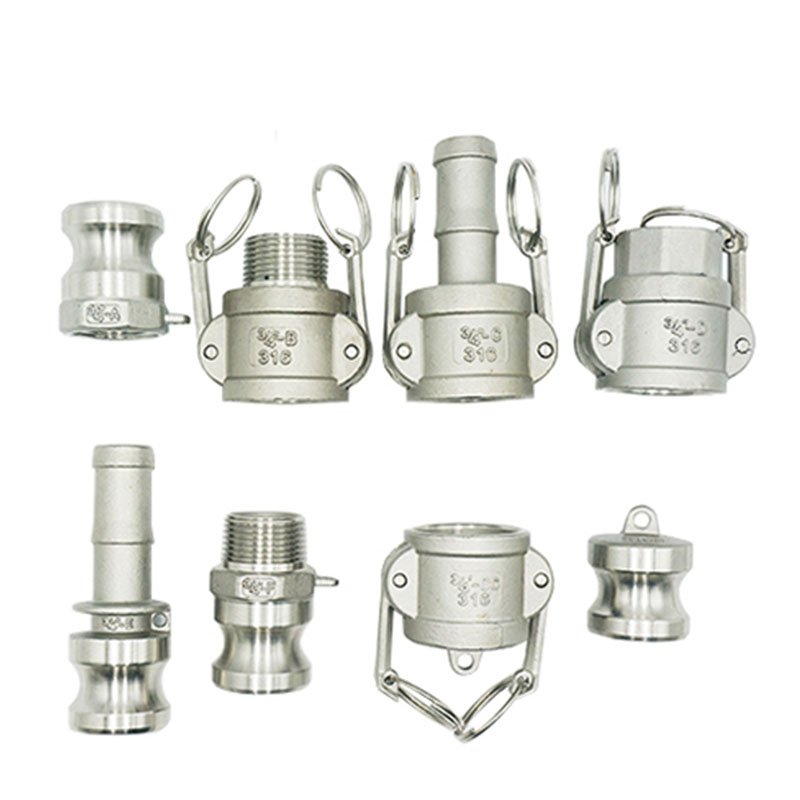

Stainless steel camlock

Application:

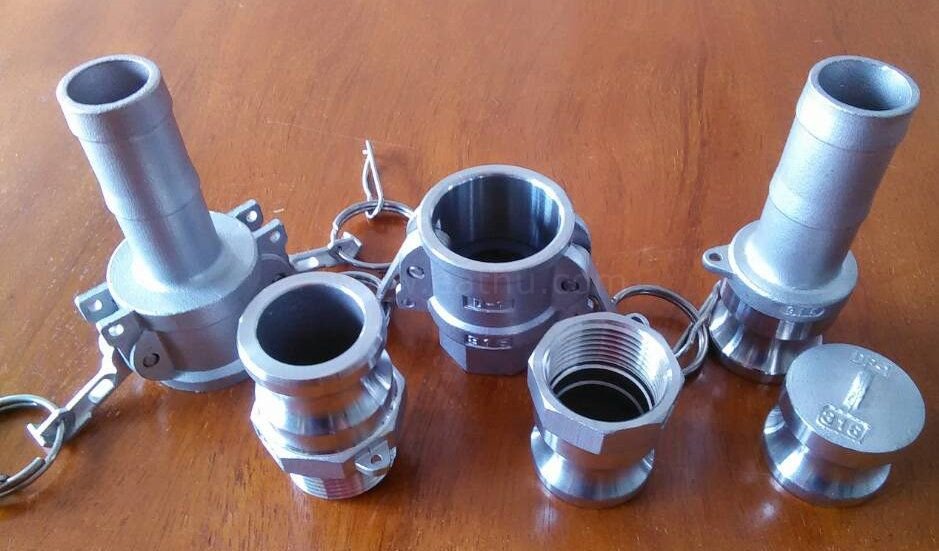

Stainless steel camlock

Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"

Pressure: 150lbs

Dimension: ISO4144

Technical: Precision Casting and punch press

Material: SUS304, SUS316

Connection type: Female threaded

Gasket: buna(NBR),viton and Telfon

Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1

Specification:

Stainless steel camlock

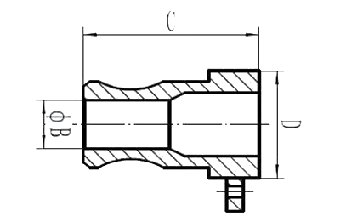

TYPE F

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		22	22	26	30.7	38.4	47.5	60	76.5	103.5	127.2	152.4
C		36.5	36.5	42	51	53.5	58.5	72	68	69	74	79.5
D		31.5	32	38	47.2	54	65	79.5	94.3	122	151	176
L		66	80	90	105	120	141

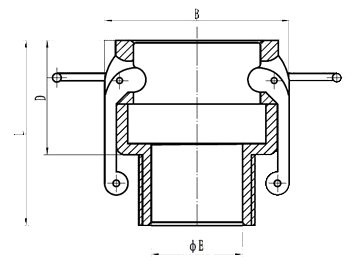

TYPE B

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		50.5	51	59	71	79	89	102	124	149
C		40.5	40.5	46.3	56	63	74.5	88	104.7	134	161	195
D		29	29.5	37	44	43.5	51	53	57	57	59	67
E		14.5	19.8	25	31	39.5	50.5	65	78.5	102	122.3	143
L		45	45	56.5	66	67	75.2	83	90	96	95	107

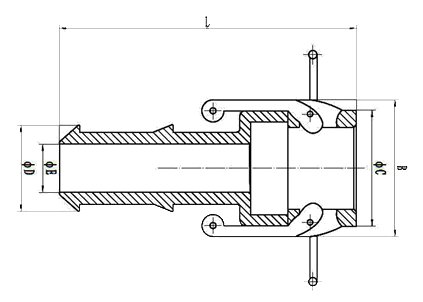

TYPE C

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		51	51	59	71	79	89	102	123	150.5
C		40	40	46	56	64	73.5	87	104.5	134	161	195
D		19.5	19.5	26	32.3	39	53	64	78.7	105.3	130	155
L		89	89	100	113.2	115	129	148.5	157.5	168.5	176	196

TYPE D

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		51	51	59	71	79	89	103.5	122	151	161	195
D		29.5	29.5	37	43.5	44	51	53	55	57	59	67
E		16.2	19.5	26	36	40	49	59	71	102	146	176.5
L		42.5	42.5	53	64	63	75	81	85.5	90	98	110

TYPE E

inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
mm	15	20	25	32	40	50	65	80	100	125	150
B	32.8	32.8	37	46.5	54	64	77	92.5	121.5	145.5	175.8
C	19.8	19.8	26	33	39	52.2	66	77.6	105.5	130	155
D	14	14	20	27	32	44	57	69	96.5	117.5	141
E	53.5	53.5	63	68	69.5	80.5	89.5	101.5	111	117	129
L	93	93	103	114	118	133.5	144.3	161.5	171	233	248

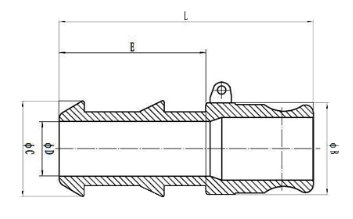

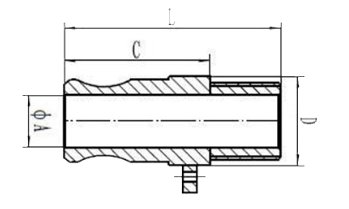

TYPE F

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
A		22	22	25.2	30	38	48.5	60	76.5	104.5	127.2	152.4
C		36	36	41.5	50.5	52.5	57.5	58.7	69	67	72.5	78
D		32	32	36.7	46.2	53	64	77.5	92.5	121	151	176
L		50.5	51.7	59.5	72	74	82.5	88	99.5	105	112.5	122

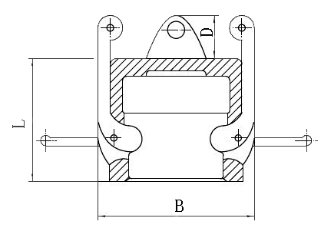

TYPE DC

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		51	51	59.3	70	78	89	101.5	122.5	150	182	215
D		10.5	10.5	10.8	12	12.8	12	14.5	16	16	16	16
L		32	32	40	45	46	53	56	61	59	64	73

TYPE DP

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		10.5	10.5	10.5	11.5	11.3	13.5	14.5	13.5	14.5	16	16
L		25.5	25.5	31	39	42	46	48	50	53	53	65
