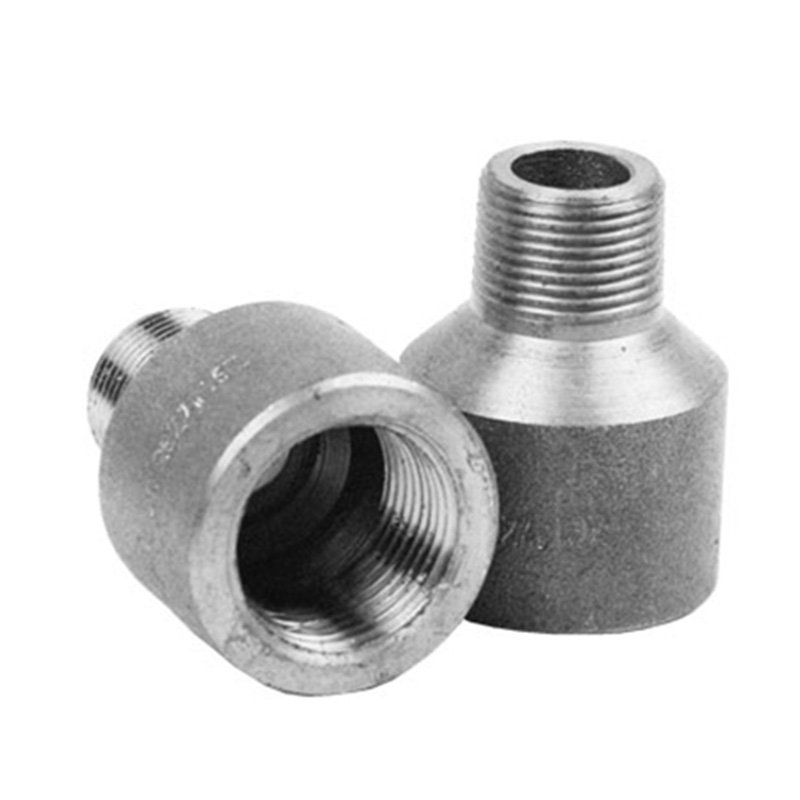

Threaded Adapter
Application:
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
Share to:
Specification:

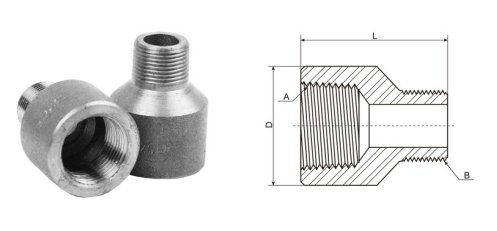

Threaded Adapter Dimension 3000LB
| DN | Nom. Pipe Size | D | L | Threaded Size |
| A | B | |||
| 8 | 1/4" | 19 | 33 | 1/8" |
| 10 | 3/8" | 22 | 35 | 1/4" |
| 15 | 1/2" | 28 | 42 | 3/8" |
| 20 | 3/4" | 35 | 47 | 1/2" |
| 25 | 1" | 44 | 55 | 3/4" |
| 32 | 1-1/4" | 57 | 63 | 1" |
| 40 | 1-1/2" | 64 | 66 | 1-1/4" |
| 50 | 2" | 76 | 76 | 1-1/2" |
| 65 | 2-1/2" | 92 | 90 | 2" |
| 80 | 3" | 108 | 110 | 2-1/2" |
| 100 | 4" | 140 | 120 | 3" |
(1) Dimensions in Millimeters.
(2) Thickness in accordance with ANSI/ASME B1.20.1 1983
(3) Dimensions may vary according to the customers' and manufacturer's requirement.
