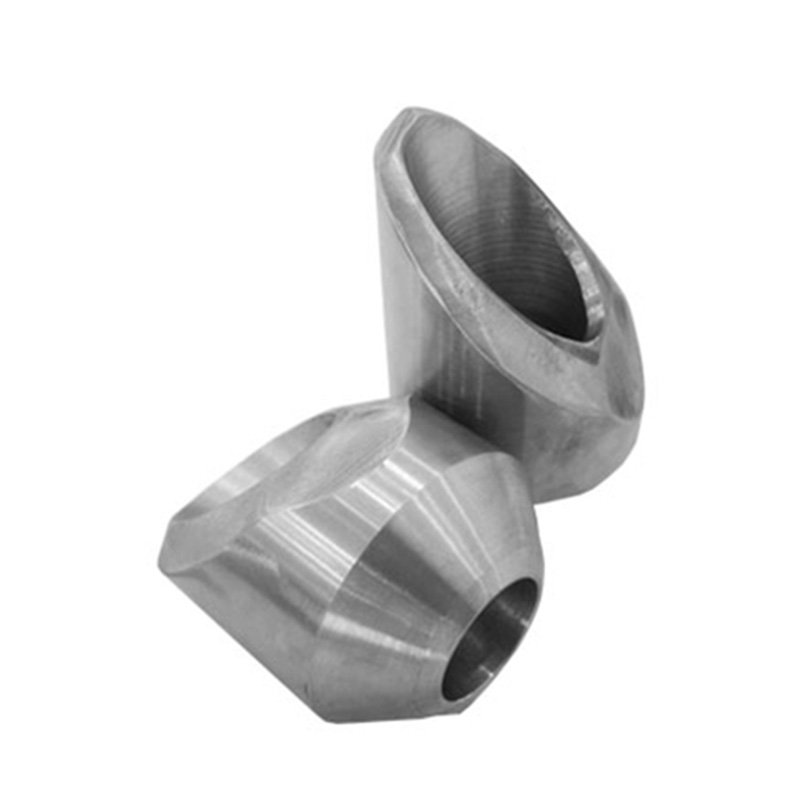

Elbow Outlet
Application:
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
Share to:
Specification:

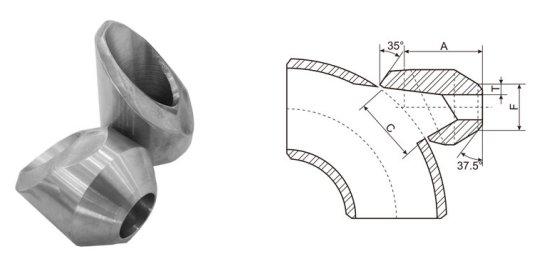

Elbow Outlet Dimension
SCH80
| Outlet Pipe | A | C | F | T | |
| DN | Inch | ||||
| 8 | 1/4" | 40.5 | 35.2 | 13.7 | 3 |
| 10 | 3/8" | 40.5 | 35.2 | 17.1 | 3.2 |
| 15 | 1/2" | 40.5 | 35.2 | 21.3 | 3.7 |
| 20 | 3/4" | 47.6 | 43.6 | 26.7 | 3.9 |
| 25 | 1" | 55.6 | 54 | 33.4 | 4.5 |
| 32 | 1-1/4" | 60.3 | 67.5 | 42.2 | 4.9 |
| 40 | 1-1/2" | 66.7 | 76.2 | 48.3 | 5.1 |
| 50 | 2" | 81 | 104.8 | 60.3 | 5.5 |
| 65 | 2-1/2" | 82.6 | 106.4 | 73 | 7 |
| 80 | 3" | 96.8 | 125.4 | 88.9 | 7.6 |
| 100 | 4" | 114.3 | 163.5 | 114.3 | 8.6 |
SCH160
| Outlet Pipe | A | C | F | T | |
| DN | Inch | ||||
| 8 | 1/4" | 40.5 | 34.9 | 13.7 | 3.7 |
| 10 | 3/8" | 40.5 | 34.9 | 17.1 | 4 |
| 15 | 1/2" | 47.6 | 34.9 | 21.3 | 4.7 |
| 20 | 3/4" | 55.6 | 43.6 | 26.7 | 5.5 |
| 25 | 1" | 60.3 | 54 | 33.4 | 6.4 |
| 32 | 1-1/4" | 66.7 | 67.5 | 42.2 | 6.4 |
| 40 | 1-1/2" | 85.7 | 76.2 | 48.3 | 7.1 |
(1) Dimensions in Millimeters.
(2) Dimensions refer to ANSI B16.11
(3) Dimensions may vary according to the customer's and manufacturer's requirement.
