Pipe Fittings

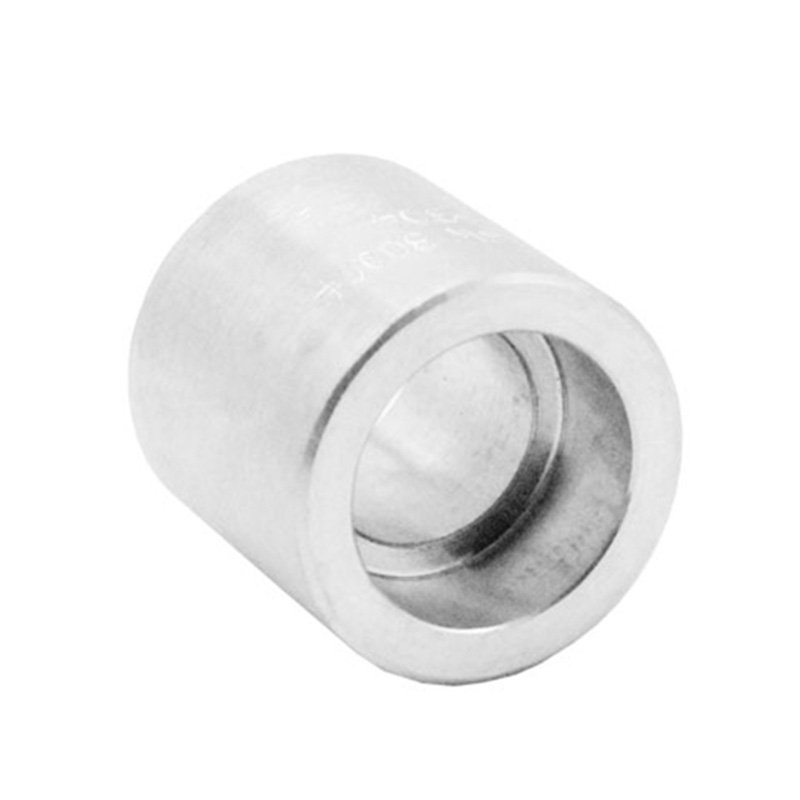

Socket Weld Half Coupling

Application:

Size: 1/8"-4" threaded and socket weld type

Pressure:

Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)

Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)

Conection: Thread (NPT, BSP,RP, G) ,Socket Welding

Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.

Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;

Material: Stainless steel, Carbon steel and Duplex stainless steel

Specification:

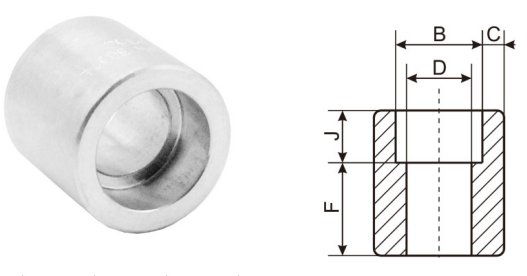

Socket Weld Half Coupling Dimension

DN	Nom.	Socket	Bore Dia.Of Fitting			Socket Wall Thickness(2)						Laying Lengths		Depth of	End Wall Thickness
	Pipe	Bore	D			C						Coupling	Half	Socket	Min.
	Size	Dia.				Class Designation						E	Coupling	Min.	K
		B	Class Designation			3000		6000		9000			F	J	Class Designation
			3000	6000	9000	Ave.	Min.	Ave.	Min.	Ave.	Min.				3000	6000	9000
6	1/8"	10.8	6.9	4	---	3.18	3.18	3.96	3.43	---	---	6.5	16	9.5	4.8	6.4	---
8	1/4"	14.2	9.3	6.4	---	3.78	3.3	4.6	4.01	---	---	6.5	16	9.5	4.8	6.4	---
10	3/8"	17.6	12.6	9.2	---	4.01	3.5	5.03	4.37	---	---	6.5	17.5	9.5	4.8	6.4	---
15	1/2"	21.8	15.8	11.8	6.4	4.67	4.09	5.97	5.18	9.35	8.18	9.5	22.5	9.5	6.4	7.9	11.2
20	3/4"	27.2	21	15.6	11.1	4.9	4.27	6.96	6.04	9.78	8.56	9.5	24	12.5	6.4	7.9	12.7
25	1"	33.9	26.7	20.7	15.2	5.69	4.98	7.92	6.93	11.38	9.96	12.5	28.5	12.5	9.6	11.2	14.2
32	1-1/4"	42.7	35.1	29.5	22.8	6.07	5.28	7.92	6.93	12.14	10.62	12.5	30	12.5	9.6	11.2	14.2
40	1-1/2"	48.8	40.9	34	28	6.35	5.54	8.92	7.8	12.7	11.12	12.5	32	12.5	11.2	12.7	15.7
50	2"	61.2	52.5	42.9	38.2	6.93	6.04	10.92	9.5	13.84	12.12	19	41	16	12.7	15.7	19
65	2-1/2"	73.9	62.7	---	---	8.76	7.67	---	---	---	---	19	43	16	15.7	19	---
80	3"	89.8	78	---	---	9.52	8.3	---	---	---	---	19	44.5	16	19	22.4	---
100	4"	115.2	102.3	---	---	10.69	9.35	---	---	---	---	19	48	19	22.4	28.4	---

(1) Dimensions in Millimeters.

(2) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.

(3) Reducer: C,J,E in accordance with large size.D in accordance with small size. The others in accordance with each size.

Product Details

Coupling is a kind of pipe fittings.Used to connect two pipes or change the flow rate of the pipeline.Pipe couplings are highly demanded in the market.

Forged coupling is a high pressure pipe coupling.It is made from round steel bar,and then machining the socket bores by CNC machine.Socket weld coupling can bear higher pressures than threaded couplings.

Forged couplings have two different connection methods to the pipes:threading and socket welding.Therefore there are three types of forge coupling: socket weld couplings,threaded couplings and socket weld to threaded couplings.

Accoding to the ends,Forged socket weld couplings have two types: full coupling socket weld and half coupling socket weld.Socket weld full coupling has both ends with socket welded;SW half coupling is only one end socket welded,the other end can be welded directly to a pipe.

According to the shapes,socket weld couplings can be divided into Straight coupling and reducing coupling socket weld.

EATHU has big advantages on forged fittings.Especially carbon steel fittings and stainless steel fittings.During the past 20years,EATHU continuously improve the technology, update the equipments, and accumulated rich experience.Now we can provide high quality forged steel fittings with competitive prices .Also we always keep LARGE AMOUNT of raw materials and finished forged fittings products IN STOCK which allow us to short the delivery time and make the prices stable.
