Pipe Fittings

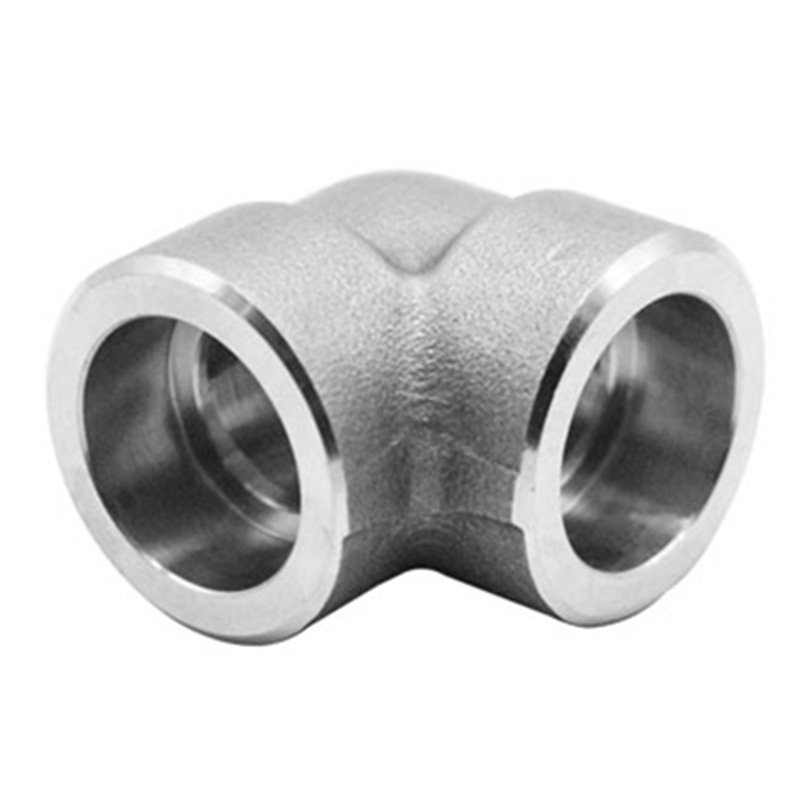

Socket Weld 90 Degree Elbow

Application:

Size: 1/8"-4" threaded and socket weld type

Pressure:

Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)

Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)

Conection: Thread (NPT, BSP,RP, G) ,Socket Welding

Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.

Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;

Material: Stainless steel, Carbon steel and Duplex stainless steel

Specification:

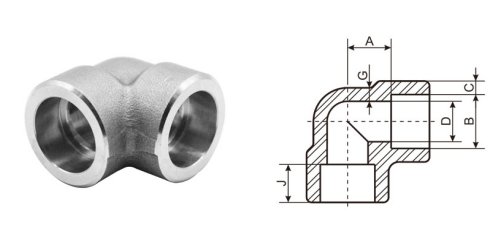

DN	Nom.	Center to Bottom of Socket-A						Socket	Bore Dia.Of Fitting			Socket Wall Thickness（2）						Body Wall Thickness			Depth
	Pipe	Center to Bottom of Socket-A						Bore	D			C						G			of
	Size	90°Elbows			45°Elbows			Dia.				Class Designation						Class Designation			Socket
		Tees,Crosses			45°Elbows			B				Class Designation						Class Designation			Min.
		Class Designation			Class Designation				Class Designation			3000		6000		9000		3000	6000	9000	J
		3000	6000	9000	3000	6000	9000		3000	6000	9000	Ave.	Min.	Ave.	Min.	Ave.	Min.	Min.	Min.	Min.
6	1/8"	11	11	---	8	8	---	10.8	6.9	4	---	3.18	3.18	3.96	3.43	---	---	2.41	3.15	---	9.5
8	1/4"	11	13.5	---	8	8	---	14.2	9.3	6.4	---	3.78	3.3	4.6	4.01	---	---	3.02	3.68	---	9.5
10	3/8"	13.5	15.5	---	8	11	---	17.6	12.6	9.2	---	4.01	3.5	5.03	4.37	---	---	3.2	4.01	---	9.5
15	1/2"	15.5	19	25.5	11	12.5	15.5	21.8	15.8	11.8	6.4	4.67	4.09	5.97	5.18	9.35	8.18	3.73	4.78	7.47	9.5
20	3/4"	19	22.5	28.5	13	14	19	27.2	21	15.6	11.1	4.9	4.27	6.96	6.04	9.78	8.56	3.91	5.56	7.82	12.5
25	1"	22.5	27	32	14	17.5	20.5	33.9	26.7	20.7	15.2	5.69	4.98	7.92	6.93	11.38	9.96	4.55	6.35	9.09	12.5
32	1-1/4"	27	32	35	17.5	20.5	22.5	42.7	35.1	29.5	22.8	6.07	5.28	7.92	6.93	12.14	10.62	4.85	6.35	9.7	12.5
40	1-1/2"	32	38	38	20.5	25.5	25.5	48.8	40.9	34	28	6.35	5.54	8.92	7.8	12.7	11.12	5.08	7.14	10.15	12.5
50	2"	38	41	54	25.5	28.5	28.5	61.2	52.5	42.9	38.2	6.93	6.04	10.92	9.5	13.84	12.12	5.54	8.74	11.07	16
65	2-1/2"	41	---	---	28.5	---	---	73.9	62.7	---	---	8.76	7.67	---	---	---	---	7.01	---	---	16
80	3"	57	---	---	32	---	---	89.8	78	---	---	9.52	8.3	---	---	---	---	7.62	---	---	16
100	4"	66.5	---	---	41	---	---	115.2	102.3	---	---	10.69	9.35	---	---	---	---	8.56	---	---	16
100	4"	66.5	---	---	41	---	---	115.2	102.3	---	---	10.69	9.35	---	---	---	---	8.56	---	---	16

(1) Dimensions in Millimeters.

(2) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.

(3) Upper and lower values for each size are the respective maximum and minimum dimensions.

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, the standard export packaging is done in wooden cases. All forged fittings are marked with Grade, Lot No, Size, Degree, and our trademark. On special requests, we can also, make custom marking on our products.

Quality Assurance

At MetalGoods, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report.
