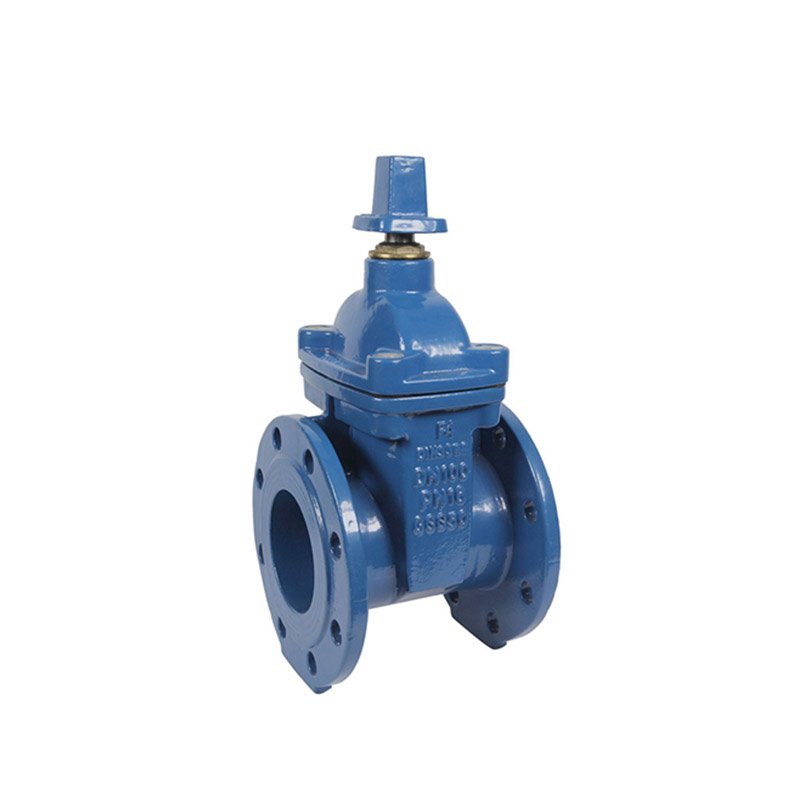

DIN3352 F4 F5 Resilient Seated Flanged Gate Valves
Application:
DIN 3352 F4 Resilient Seated Flanged Gate Valves
Technical Specifications of DIN 3352 F4/F5 Resilient Seated Flanged Gate Valves:
- Design and manufacture: EN1171, EN1074-1 and 2
- Face to face dimension: EN 558-1 Series 14 (DIN3202 F4)
EN 558-1 Series 15 (DIN3202 F5)
- Flange dimensions and drilling: EN1092-2 PN10/16
- Size range: DN40 - DN400
- Max. working pressure: 1.0/1.6 Mpa
- Inspection test: EN12266
- Working temperature: -15°C to +80°C
- Suitable medium: water

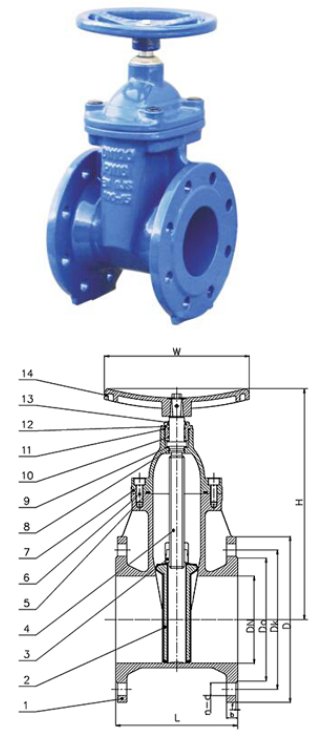

Specification:
| No. | Parts | Materials |  |
| 1 | Body | Ductile iron EN GJS 500-7/400-15 | |
| 2 | Wedge | Ductile iron EN GJS 500-7/400-15 + EPDM | |
| 3 | Stem nut | Brass CW617N | |
| 4 | Stem | Stainless steel X20Cr13 | |
| 5 | Bonnet gasket | EPDM EN681-1 | |
| 6 | Bonnet bolts | Carbon steel 8.8 - Galvd | |
| 7 | Bonnet | Ductile iron EN GJS 500-7/400-15 | |
| 8 | Back seal | EPDM EN681-1 | |
| 9 | Friction gasket | POM | |
| 10 | O-ring | EPDM EN681-1 | |
| 11 | O-ring | EPDM EN681-1 | |
| 12 | Bush | Brass CW617N | |
| 13 | Dust proof cover | EPDM EN681-1 | |
| 14 | Handwheel | Cast iron EN GJL250 |
Dimensions (mm) and weight (kgs) of DIN 3352 F4/F5 Resilient Seated Flanged Gate Valves:
| DN | L | D | b | f | EN1092-2 PN10 | EN1092-2 PN16 | W | H | Weight (Kg) | ||||||
| F4 | F5 | Dk | Do | n-d | Dk | Do | n-d | F4 | F5 | ||||||
| 40 | 140 | 240 | 150 | 19 | 3 | 110 | 84 | 4-19 | 110 | 84 | 4-19 | 160 | 219 | 9.3 | 10.3 |
| 50 | 150 | 250 | 165 | 19 | 3 | 125 | 98 | 4-19 | 125 | 98 | 4-19 | 160 | 227 | 10 | 11 |
| 65 | 170 | 270 | 185 | 19 | 3 | 145 | 118 | 4-19 | 145 | 118 | 4-19 | 160 | 252 | 12 | 13.5 |
| 80 | 180 | 280 | 200 | 19 | 3 | 160 | 132 | 4-19 | 160 | 132 | 8-19 | 200 | 284 | 15.5 | 17.5 |
| 100 | 190 | 300 | 220 | 19 | 3 | 180 | 153 | 8-19 | 180 | 153 | 8-19 | 200 | 311 | 19.5 | 21.5 |
| 125 | 200 | 325 | 250 | 19 | 3 | 210 | 183 | 8-19 | 210 | 183 | 8-19 | 250 | 380 | 26.5 | 30 |
| 150 | 210 | 350 | 285 | 19 | 3 | 240 | 209 | 8-23 | 240 | 209 | 8-23 | 250 | 413 | 33.5 | 41.5 |
| 200 | 230 | 400 | 340 | 20 | 3 | 295 | 264 | 8-23 | 295 | 264 | 12-23 | 320 | 516 | 55.5 | 67.5 |
| 250 | 250 | 450 | 405 | 22 | 3 | 350 | 319 | 12-23 | 355 | 319 | 12-28 | 400 | 606 | 85 | 99 |
| 300 | 270 | 500 | 460 | 24.5 | 4 | 400 | 367 | 12-23 | 410 | 367 | 12-28 | 400 | 698 | 114 | 135 |
| 350 | 290 | 550 | 520 | 26.5 | 4 | 460 | 429 | 16-23 | 470 | 429 | 16-28 | 500 | 799 | 159 | 229 |
| 400 | 310 | 600 | 580 | 28 | 4 | 515 | 480 | 16-28 | 525 | 480 | 16-31 | 500 | 876 | 209 | 299 |
Product Details
Main Features of DIN 3352 F4/F5 Resilient Seated Flanged Gate Valves:
- Body and bonnet inside and outside epoxy powder coated (min.250 microns)
- Wedge fully rubberized with vulcanized EPDM
- Mutiple O-rings stem sealing and replaceable under full pressure
- Stainless steel stem with rolled thread
- Stem cap handwheel and extension spindle operation available
DIN 3352 F4/F5 Resilient Seated Flanged Gate Valves introduction:
The valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation.
Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc.
and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction,
petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.
