Valves

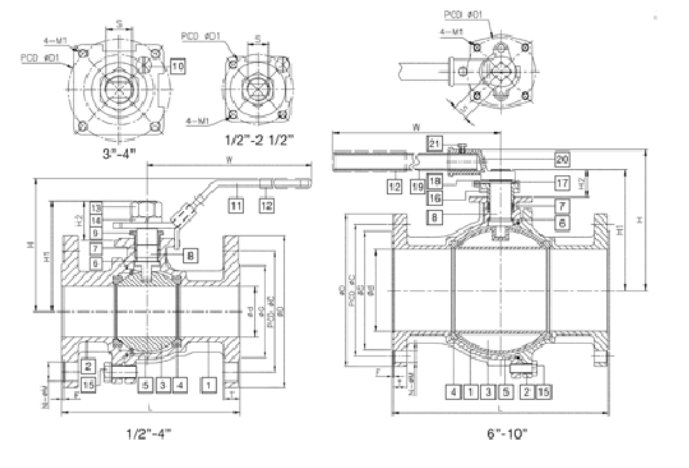

Specification:

PartsMaterial
BodyASTM A351-CF8M
CapASTM A351-CF8M
BallASTM A351-CF8M
Ball SeatTFM 1600
Body SealPTFE
Thrust WasherPTFE
PackingPTFE
StemASTM A276-316
Gland NutAISI 304
Stop PinAISI 304
HandleAISI 304
Handle SleevePVC
Stem NutAISI 304
Spring WasherAISI 304
BoltAISI 304
GlandAISI 304
StopperAISI 304
Circlips for ShaftAISI 304
Steel TubeAISI 304
Wrench BlockAISI 304
BoltAISI 304



SIZEdLTFNMGCDHH1H2SWD1M1TorqueWT
1/2"0.594.250.380.0640.631.382.383.53.392.250.930.446.651.65M5343.7
3/4"0.794.610.380.0640.631.692.763.93.52.360.930.446.651.65M5494.6
1"0.9850.380.0640.632.013.114.254.062.891.140.58.091.97M6586.4
1-1/4"1.265.510.440.0640.632.53.54.614.063.091.140.58.091.97M6808.6
1-1/2"1.56.50.50.0640.632.883.8855.124.051.550.7510.512.76M822212.6
2"1.977.010.570.0640.753.624.755.985.314.351.550.7510.512.76M833718.5
2-1/2"2.567.480.630.0640.754.125.477.015.794.81.520.7511.382.76M839929.3
3"3.157.990.690.0640.7555.987.486.545.591.690.7515.354.02M1054036.2
4"3.9490.880.0680.756.197.58.987.136.181.690.7515.354.02M1070961.1
6"5.9115.5110.0680.878.59.5110.9810.18.661.971.0629.254.92M121682119
8"7.8717.991.130.0680.8910.6311.7513.513.1511.833.371.4233.075.51M164160194
10"9.8420.981.190.0612112.7614.2515.9814.8813.172.931.4240.945.51M166638359.4

*Actual torque values may vary. Please consult the Eathu Sales team.

**All torque values are in in-lb. Weight values are in lb.
