Valves

Specification:

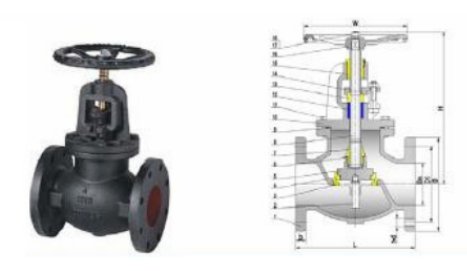

Parts and Materials of MSS SP-85 CLASS 125 cast iron globe valve:

MATERIALS
ITEMPARTS NAMEMATERIAL
1BODYASTM A126B
2GUIDE SPINDLE2Cr13
3SEATZCuSn5Pb5Zn5
4DISC SEAL RINGZCuSn5Pb5Zn5
5DISCASTM A126B
6LOCK RINGRed Copper
7DISC COVERHPb59-1
8STEMHPb59-1
9BONNET GASKETGRAPHITE+08F
10BONNETASTM A126B
11BOLTCARBON STEEL
12PACKINGGRAPHITE
13PACKING GLANDHPb59-1
14GLAND FOLLOWERASTM A536 65-45-12
15STEM NUTZcuZn38Mn2Pb2
16HANDWHEELEN-GJS-500-7
17NUTCARBON STEEL
18WASHER100HV


Dimensions (mm) of MSS SP-85 CLASS 125 cast iron globe valve:
INCHDNLDD1bn-dHW
2”51203152120.715.84-19273200
2-1/2”63.5216178139.717.54-19295200
3”76241191152.4194-19314.4255
4”102292229190.523.98-19359255
5”127330254215.923.98-22388306
6”152356279241.325.48-22454360
8”203495343298.528.58-22506360
10”25462240636230.212-25584406
12”305698483431.831.812-25690406
