Pipe Fittings

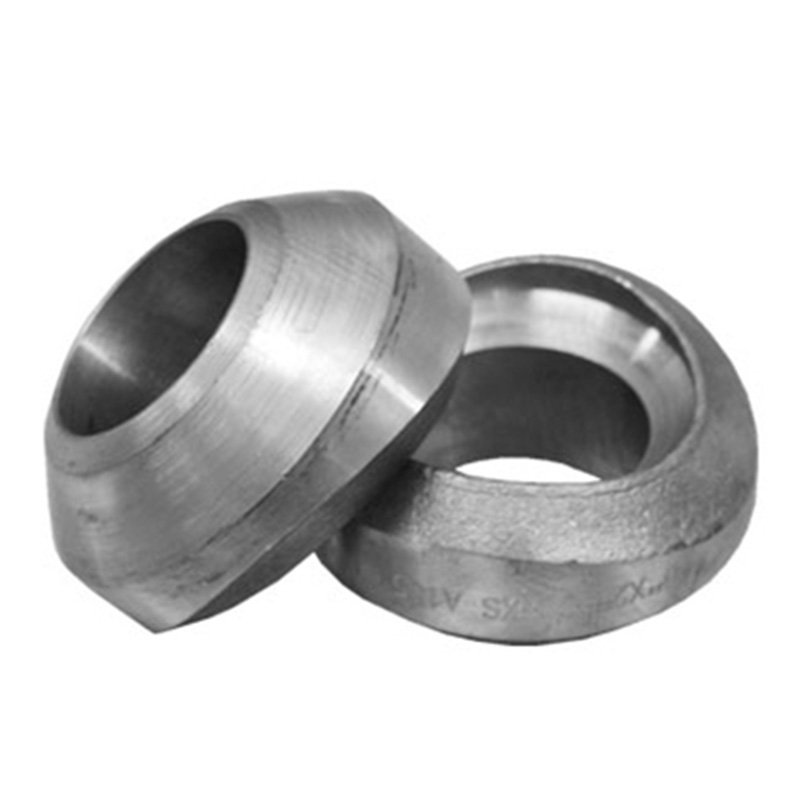

Butt Weld Outlet

Application:

Size: 1/8"-4" threaded and socket weld type

Pressure:

Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)

Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)

Conection: Thread (NPT, BSP,RP, G) ,Socket Welding

Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.

Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;

Material: Stainless steel, Carbon steel and Duplex stainless steel

Specification:

Butt Weld Outlet Dimension

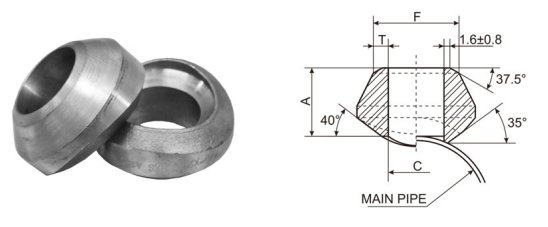

Out-Let	Reducing Way
Pipe	A	C	F	T
NPS				Standard	Extra
				Weight	Strong
1/8"	16	13.7	10.3	1.73	2.41
1/4"	16	13.7	13.7	2.24	3.02
3/8"	19	17.1	17.1	2.31	3.2
1/2"	19	21.3	21.3	2.77	3.73
3/4"	22	26.7	26.7	2.87	3.91
1"	27	33.4	33.4	3.38	4.55
1-1/4"	32	42.2	42.2	3.56	4.85
1-1/2"	33	48.3	48.3	3.68	5.08
2"	38	60.3	60.3	3.91	5.54
2-1/2"	41	73	73	5.16	7.01
3"	44	88.9	88.9	5.49	7.62
3-1/2"	48	101.6	101.6	5.74	8.56
4"	51	114.3	114.3	6.02	8.56
5"	57	141.3	141.3	6.55	9.53
6"	78	168.3	168.3	7.11	10.97
8"	99	219.3	219.3	8.11	12.7
10"	94	273.1	273.1	9.27	12.7
12"	103	323.9	323.9	9.53	12.7
14"	100	355.6	355.6	9.53	12.7
16"	106	406.4	406.4	9.53	12.7
18"	111	457.2	457.2	9.53	12.7
20"	119	508	508	9.53	12.7
24"	140	609.6	609.6	9.53	12.7

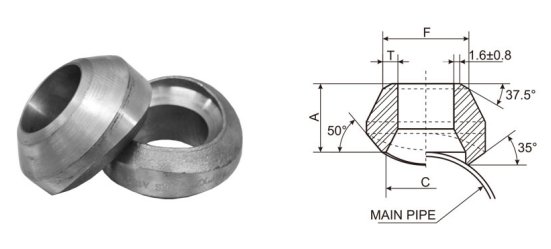

Out-Let	Staight Way
Pipe	A	C	F	T
NPS				Standard	Extra
				Weight	Strong
1/8"	---	---	---	---	---
1/4"	16	11.5	13.7	2.24	3.02
3/8"	19	14.5	17.1	2.31	3.2
1/2"	19	16.5	21.3	2.77	3.73
3/4"	22	21.5	26.7	2.87	3.91
1"	27	27.2	33.4	3.38	4.55
1-1/4"	32	36	42.2	3.56	4.85
1-1/2"	33	42	48.3	3.68	5.08
2"	38	53	60.3	3.91	5.54
2-1/2"	41	65	73	5.16	7.01
3"	44	80	88.9	5.49	7.62
3-1/2"	---	---	---	---	---
4"	51	104	114.3	6.02	8.56

(1) Dimensions in Millimeters.

(2) Weld Bevel in accordance with ASME B16.25

(3) Outside size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.

(4) Outside size 5 and up order to specific size combination.

Dimensional tolerance of MSS-SP97

Item		1/8"to3/4"	1"to4"	5"to12"	14"to24
Face of fitting to crotch(A)		±0.76	±1.52	±3.05	±4.83
