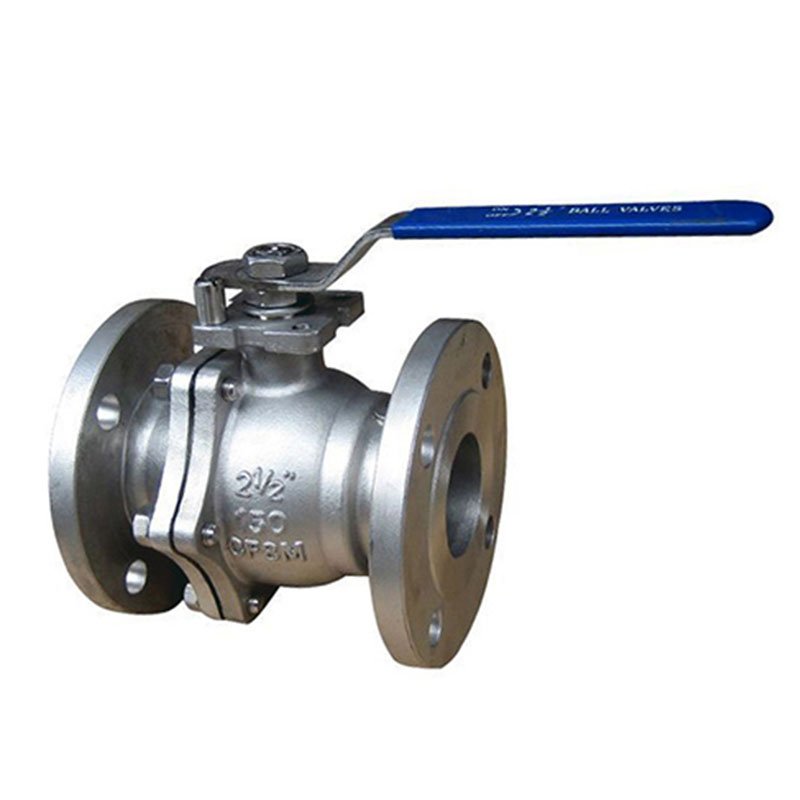

3PC Stainless Steel Flange Ball Valve
Application:
3PC Stainless Steel Flange Ball Valve
Size:1/2”-4”
Pressure:PN16-PN40
Body Materials:Stainless Steel ,CF8,CF8M
Ball Materials:Stainless Steel ,CF8,CF8M
Seal Materials:PTFE
Connection:flange
Drive type:handle
Structure type:floating
Specification:

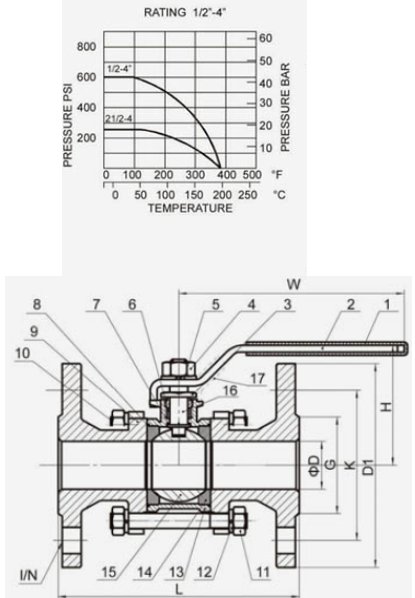

MATERIAL LIST
| ITEM | DESIGNATION | QTY | MATERIAL | |
| 1 | HANDLE SLEEVE | 1 | PVC | |
| 2 | HANDLE | 1 | 304 | |
| 3 | GLAND NUT | 1 | 304 | |
| 4 | STEM NUT | 1 | 304 | |
| 5 | STEM WASHER | 1 | 304 | |
| 6 | STEM PACKING | 1 | PTFE | |
| 7 | THRUST WASHER | 1 | PTFE | |
| 8 | JOINT GASKET | 2 | PTFE | |
| 9 | END CAP | 2 | CF8/CF8M | |
| 10 | BOLT | 4(6) | 304 | |
| 11 | NUT | 8(12) | 304 | |
| 12 | SPRING WASHER | 8(12) | 304 | |
| 13 | BODY | 1 | CF8/CF8M | |
| 14 | BALL SEAT | 2 | RPTFE | |
| 15 | BALL | 1 | CF8/CF8M | |
| 16 | STEM | 1 | 304/316 | |
| 17 | LOCKING DEVICE | 1 | 304 |
DIMENSIONS (mm)
| SIZE \ ITEM | D | L | H | W | D1 | K | G | I/N |
| 1/2" | 15 | 130 | 55 | 103 | 95 | 65 | 45 | 14/4 |
| 3/4" | 20 | 150 | 61 | 103 | 105 | 75 | 58 | 14/4 |
| 1" | 25 | 160 | 61 | 135 | 115 | 85 | 68 | 14/4 |
| 1.1/4" | 32 | 180 | 78 | 135 | 140 | 100 | 78 | 18/4 |
| 1.1/2" | 40 | 200 | 90 | 190 | 150 | 110 | 88 | 18/4 |
| 2" | 50 | 230 | 97 | 190 | 165 | 125 | 102 | 18/4 |
| 2.1/2" | 64 | 290 | 143 | 310 | 185 | 145 | 122 | 18/4 |
| 18/8 | ||||||||
| 3" | 76 | 310 | 152 | 310 | 200 | 160 | 138 | 18/8 |
| 4" | 100 | 350 | 187 | 400 | 220 | 180 | 158 | 18/8 |
| 235 | 190 | 162 | 22/8 |
1. Fluid resistance is small, the resistance coefficient of fish length loudness equal to the pipeline;
2. Simple structure, small size, light weight;
3. Tight and reliable, good sealing, the vacuum system is also widely used;
4. Easy to operate, switch quickly, easy to control;
5. Easy maintenance, ball valve structure is simple, easy replacement demolition;
6. In the fully open or fully closed, the sealing material and media isolation, media will not cause erosion of the sealing material.
