Pipe Fittings

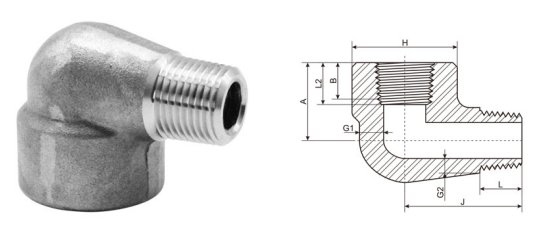

Specification:

DNNom.HAJG1G2¹L2²L
Pipe(Min.)(Min.)

Size3000600030006000300060003000600030006000(Min.)(Min.)
61/8"1925192225323.185.082.744.226.46.710
81/4"2532222532383.35.663.225.288.110.211
103/8"3238252838413.56.983.55.599.110.413
151/2"3844283541484.098.154.166.5310.913.614
203/4"4451354448574.328.534.886.8612.713.916
251"5162445157664.989.935.567.9514.717.319
321-1/4"6270515466715.2810.595.568.48171821
401-1/2"7084546471845.5611.076.258.8917.818.421
502"841026483841057.1412.097.649.7191922

(1) Dimensions in Millimeters.

(2) Dimension B is minimum length of perfect thread. The length of useful thread(B plus threads with fully formed roots and flat crests)shall not be less than L2(effective length of

external thread)required by American National Standard for Pipe Threads (ANSI/ASME B1.20.1)
