Pipe Fittings

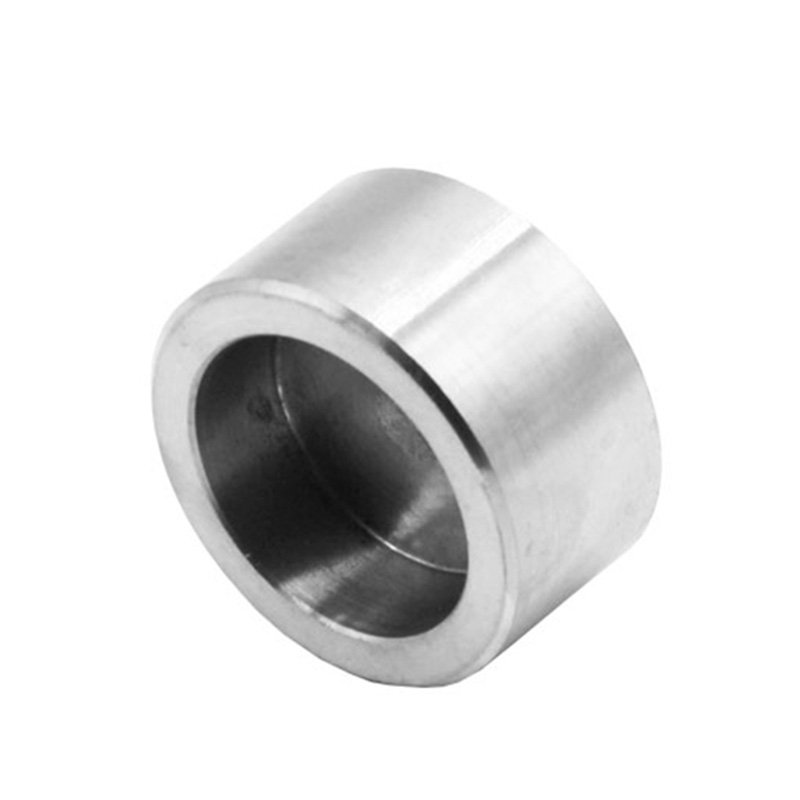

Socket Weld Cap

Application:

Size: 1/8"-4" threaded and socket weld type

Pressure:

Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)

Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)

Conection: Thread (NPT, BSP,RP, G) ,Socket Welding

Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.

Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;

Material: Stainless steel, Carbon steel and Duplex stainless steel

Specification:

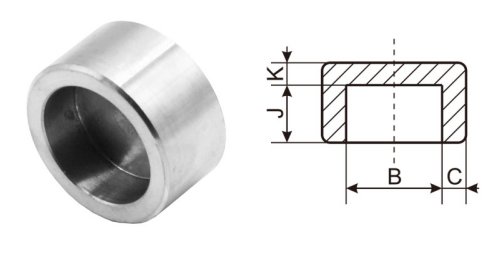

Socket Weld Cap Dimension

DN	Nom.	Socket	Bore Dia.Of Fitting			Socket Wall Thickness(2)						Laying Lengths		Depth of	End Wall Thickness
	Pipe	Bore	D			C						Coupling	Half	Socket	Min.
	Size	Dia.				Class Designation						E	Coupling	Min.	K
		B	Class Designation			3000		6000		9000			F	J	Class Designation
			3000	6000	9000	Ave.	Min.	Ave.	Min.	Ave.	Min.				3000	6000	9000
6	1/8"	10.8	6.9	4	---	3.18	3.18	3.96	3.43	---	---	6.5	16	9.5	4.8	6.4	---
8	1/4"	14.2	9.3	6.4	---	3.78	3.3	4.6	4.01	---	---	6.5	16	9.5	4.8	6.4	---
10	3/8"	17.6	12.6	9.2	---	4.01	3.5	5.03	4.37	---	---	6.5	17.5	9.5	4.8	6.4	---
15	1/2"	21.8	15.8	11.8	6.4	4.67	4.09	5.97	5.18	9.35	8.18	9.5	22.5	9.5	6.4	7.9	11.2
20	3/4"	27.2	21	15.6	11.1	4.9	4.27	6.96	6.04	9.78	8.56	9.5	24	12.5	6.4	7.9	12.7
25	1"	33.9	26.7	20.7	15.2	5.69	4.98	7.92	6.93	11.38	9.96	12.5	28.5	12.5	9.6	11.2	14.2
32	1-1/4"	42.7	35.1	29.5	22.8	6.07	5.28	7.92	6.93	12.14	10.62	12.5	30	12.5	9.6	11.2	14.2
40	1-1/2"	48.8	40.9	34	28	6.35	5.54	8.92	7.8	12.7	11.12	12.5	32	12.5	11.2	12.7	15.7
50	2"	61.2	52.5	42.9	38.2	6.93	6.04	10.92	9.5	13.84	12.12	19	41	16	12.7	15.7	19
65	2-1/2"	73.9	62.7	---	---	8.76	7.67	---	---	---	---	19	43	16	15.7	19	---
80	3"	89.8	78	---	---	9.52	8.3	---	---	---	---	19	44.5	16	19	22.4	---
100	4"	115.2	102.3	---	---	10.69	9.35	---	---	---	---	19	48	19	22.4	28.4	---

(1) Dimensions in Millimeters.

(2) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.

(3) Reducer: C,J,E in accordance with large size.D in accordance with small size. The others in accordance with each size.
