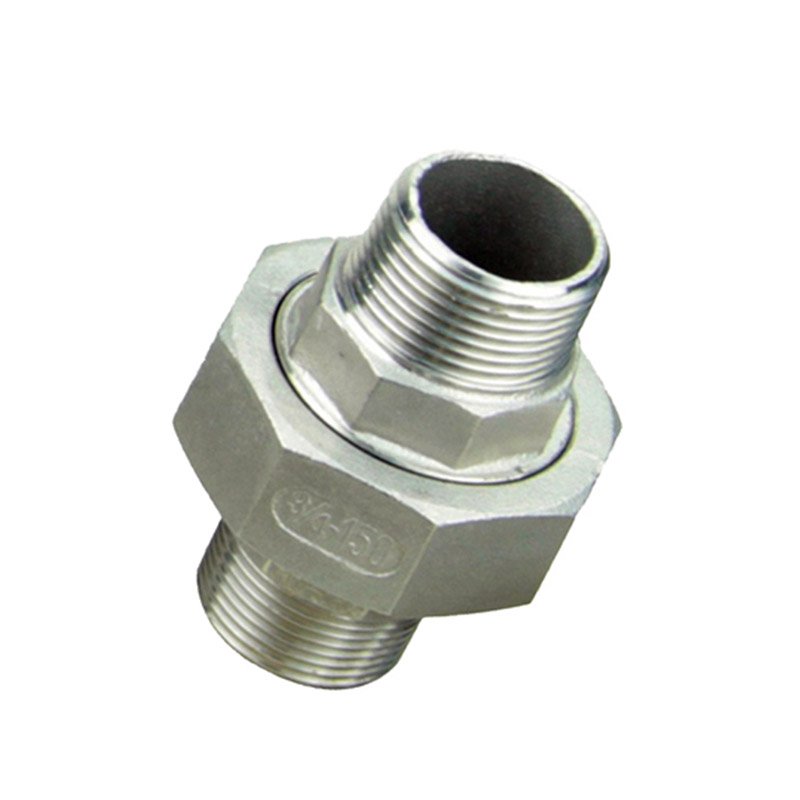

Stainless steel screwed Union Conical MM

Stainless steel threaded Union has three types:

1.Union conical FF:Both ends of the union are Female threads.

2.Union conical MF:One side is Male thread and the other side is Female thread.

3.Union conical MM:Both ends are Male threads.

These three types stainless steel threaded union allow the unions to connect with different thread pipe ends.

EATHU can supply Stainless steel threaded union with 150psi and 300psi.Material 202,304,316 etc.,all kinds of stainless steel pipe fittings.304 and 316 series stainless steel unions are most common types,the anti-corrosion performance of 316/316L stainless steel union is better than the 304/304L ones,because 316 series have more nickel content.

Stainless steel threaded pipe fittings commonly used in water or gas pipeline, small diameter pipeline, compressed air pipeline and low pressure steam pipeline.Stainless steel pipe fittings connect with threaded pipe ends to form a pipeline system.Thread can be coated with appropriate cement (such as thick white paint, lead oxide glycerin cement, etc.) to ensure sealing.

Main products: coupling with male/female threads,union ,elbow,tee,nipple ,plug,pipe, valve, camlock etc.

Main technical data:pressure: 10KG/CM2 (150LBS), 60kg/ CM2 (1000WOG); thread standard: BSPT, NPT, BSP, DIN etc; dimensions: 1/8 "-4" ;material: 201, 304, 316 etc;

Stainless steel threaded pipe fittings advantages: instead of traditional carbon steel, aluminum, copper products, the product has a long life, beautiful appearance, acid and alkali resistance, corrosion resistance.It is the upscale community, the hotel, the equipment manufacturer's ideal choice.
