Specification:

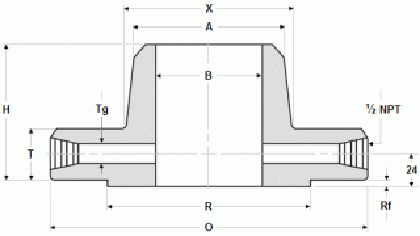

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 300

NPS	A	R	O	T	H	X	Tg
1	33.4	50.8	125	36.6	81	54	6.4
1½	48.3	73	155	36.6	84	70	6.4
2	60.3	92.1	165	36.6	84	84	6.4
2½	73	104.8	190	36.6	87	100	6.4
3	88.9	127	210	36.6	87	117	9.5
4	114.3	157.2	255	36.6	90	146	12.7
6	168.3	215.9	320	36.6	98	206	12.7
8	219.1	269.9	380	39.7	110	260	12.7
10	273	323.8	445	46.1	116	321	12.7
12	323.8	381	520	49.3	129	375	12.7
14	355.6	412.8	585	52.4	141	425	12.7
16	406.4	469.9	650	55.6	144	483	12.7
18	457	533.4	710	58.8	157	533	12.7
20	508	584.2	775	62	160	587	12.7
24	610	692.2	915	68.3	167	702	12.7

NPS	Bolt Diameter	# Bolts	Bolt holes diameter	Bolts Diameter	Bolts length mm.
1	88.9	4	11/16"	5/8"	125
1½	114.3	4	11/16"	3/4"	135
2	127	8	11/16"	5/8"	125
2½	149.2	8	13/16"	3/4"	135
3	168.3	8	13/16"	3/4"	135
4	200	8	13/16"	3/4"	135
6	269.9	12	7/8"	3/4"	135
8	330.2	12	1"	7/8"	145
10	387.4	16	1-1/8"	1"	165
12	450.8	16	1-1/4"	1-1/8"	180
14	514.4	20	1-1/4"	1-1/8"	185
16	571.5	20	1-3/8"	1-1/4"	195
18	628.6	24	1-3/8"	1-1/4"	205
20	685.8	24	1-3/8"	1-1/4"	215
24	812.8	24	1-3/8"	1-1/2"	240

COMMENTS: Height of Raised Face (RF) in CLASS 300 is 2 mm

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 600

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 300

NPS	A	R	O	T	H	X	Tg
1	33.5	50.8	125	36.6	81	54	6.4
1½	48.3	73	155	36.6	84	70	6.4
2	60.3	92.1	165	36.6	84	84	6.4
2½	73	104.8	190	36.6	87	100	6.4
3	88.9	127	210	36.6	87	117	9.5
4	114.3	157.2	275	38.1	102	152	12.7
6	168.3	215.9	355	47.7	117	222	12.7
8	219.1	269.9	420	55.6	133	273	12.7
10	273	323.8	510	63.5	152	343	12.7
12	323.8	381	560	66.7	156	400	12.7
14	355.6	412.8	605	69.9	165	432	12.7
16	406.4	469.9	685	76.2	178	495	12.7
18	457.2	533.4	745	82.6	184	546	12.7
20	508	584.2	815	88.9	190	610	12.7
24	609.6	692.2	940	101.6	203	718	12.7

NPS	BOLT CIRCLE DIAM.	BOLTS #	HOLES DIAM.	BOLTS DIAMETER	BOLTS LENGTH
1	88.9	4	11/16"	5/8"	125
1½	114.3	4	13/16"	3/4"	135
2	127	8	11/16"	5/8"	125
2½	149.2	8	13/16"	3/4"	135
3	168.3	8	13/16"	3/4"	135
4	215.9	8	1"	7/8"	150
6	292.1	12	1-1/8"	1"	180
8	349.2	12	1-1/4"	1-1/8"	195
10	431.8	16	1-3/8"	1-1/4"	220
12	489	20	1-3/8"	1-1/4"	230
14	527	20	1-1/2"	1-3/8"	240
16	603.2	20	1-5/8"	1-1/2"	260
18	654	20	1-3/4"	1-5/8"	280
20	723.9	24	1-3/4"	1-5/8"	300
24	838.2	24	2"	1-5/8"	335

COMMENTS: Height of Raised Face (RF) in CLASS 600 is 2 mm at NPS 1 – NPS 3, and 7 mm at NPS 4 – NPS 24.

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 900

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 300

NPS	R	O	T	H	X	A	Tg
1	50.8	125	36.6	81	54	33.5	6.4
1½	73	155	36.6	84	70	48.3	6.4
2	92.1	165	36.6	84	84	60.3	6.4
2½	104.8	190	36.6	87	100	73	6.4
3	127	240	38.1	102	127	88.9	9.5
4	157.2	290	44.5	114	159	114.3	12.7
6	215.9	380	55.6	140	235	168.3	12.7
8	269.9	470	63.5	162	298	219.1	12.7
10	323.8	545	69.9	184	368	273	12.7
12	381	610	79.4	200	419	323.8	12.7
14	412.8	640	85.8	213	451	355.6	12.7
16	469.9	705	88.9	216	508	406.4	12.7
18	533.4	785	101.6	229	565	457.2	12.7
20	584.2	855	108	248	622	508	12.7
24	692.2	1040	139.7	292	749	609.6	12.7

NPS	BOLT CIRCLE DIAM.	BOLTS #	HOLES DIAM.	BOLTS DIAMETER	BOLTS LENGTH
1	88.9	4	11/16"	5/8"	125
1½	114.3	4	13/16"	3/4"	135
2	127	8	11/16"	5/8"	125
2½	149.2	8	13/16"	3/4"	135
3	190.5	8	1"	7/8"	150
4	235	8	1-1/4"	1-1/8"	180
6	317.5	12	1-1/4"	1-1/8"	195
8	393.7	12	1-1/2"	1-3/8"	230
10	469.9	16	1-1/2"	1-3/8"	240
12	533.4	20	1-1/2"	1-3/8"	260
14	558.8	20	1-5/8"	1-1/2"	280
16	616	20	1-3/4"	1-5/8"	290
18	685.8	20	2"	1-7/8"	330
20	749.3	20	2-1/8"	2	355
24	901.7	20	2-1/8"	2-1/2"	445
COMMENTS: Height of Raised Face (RF) in CLASS 900 is 7 mm.

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 1500

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 300

NPS	R	O	T	H	X	A	Tg
1	50.8	150	38.1	83	52	33.5	6.4
1½	73	180	38.1	89	70	48.3	6.4
2	92.1	215	38.1	102	105	60.3	6.4
2½	104.8	245	41.3	105	124	73	6.4
3	127	265	47.7	117	133	88.9	9.5
4	157.2	310	54	124	162	114.3	12.7
6	215.9	395	82.6	171	229	168.3	12.7
8	269.9	485	92.1	213	292	219.1	12.7
10	323.8	585	108	254	368	273	12.7
12	381	675	123.9	283	451	323.8	12.7
14	412.8	750	133.4	298	495	355.6	12.7
16	469.9	825	146.1	311	552	406.4	12.7
18	533.4	915	162	327	597	457.2	12.7
20	584.2	985	177.8	356	641	508	12.7
24	692.2	1170	203.2	406	762	609.6	12.7

NPS	BOLT CIRCLE DIAM.	BOLTS #	HOLES DIAM.	BOLTS DIAMETER	BOLTS LENGTH
1	101.6	4	1"	7/8"	150
1½	123.8	4	1-1/8"	1-1/4"	160
2	165.1	8	1"	7/8"	150
2½	190.5	8	1-1/8"	1"	165
3	203.2	8	1-1/4"	1-1/8"	185
4	241.3	8	1-3/8"	1-3/8"	205
6	317.5	12	1-1/2"	1-3/8"	265
8	393.7	12	1-3/4"	1-5/8"	300
10	482.6	12	2"	1-7/8"	345
12	571.6	16	2-1/8"	2"	380
14	635	16	2-3/8"	2-1/4"	415
16	704.8	16	2-5/8"	2-1/2"	450
18	774.7	16	2-7/8"	2-3/4"	500
20	831.8	16	3-1/8"	3"	545
24	990.6	16	3-5/8"	3-1/2"	620

COMMENTS: Height of Raised Face (RF) in CLASS 1500 is 7 mm

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 2500

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 300

NPS	R	O	T	H	X	A	Tg
1	50.8	160	38.1	92	57	33.5	6.4
1½	73	205	44.5	111	79	48.3	6.4
2	92.1	235	50.8	127	95	60.3	6.4
2½	104.8	265	57.2	143	114	73	6.4
3	127	305	66.7	168	133	88.9	9.5
4	157.2	355	76.2	190	165	114.3	12.7
6	215.9	485	108	273	235	168.3	12.7
8	269.9	550	127	318	305	219.1	12.7
10	323.8	675	165.1	419	375	273	12.7
12	381	760	184.2	464	441	323.8	12.7

NPS	BOLT CIRCLE DIAM.	BOLTS #	HOLES DIAM.	BOLTS DIAMETER	BOLTS LENGTH
1	108	4	1"	7/8"	150
1½	146	4	1-1/4"	1-1/8"	180
2	171.4	8	1-1/8"	1"	185
2½	196.8	8	1-1/4"	1-1/8"	205
3	228.6	8	1-3/8"	1-1/4"	230
4	273	8	1-5/8"	1-1/2"	260
6	368.3	8	2-1/8"	2"	350
8	438.2	12	2-1/8"	2"	385
10	539.8	12	2-5/8"	2-1/2"	490
12	619.1	12	2-7/8"	2-3/4"	540
COMMENTS: Height of Raised Face (RF) in CLASS 2500 is 7 mm.

ORIFICE FLANGE DIMENSIONS OF WELD NECK RTJ, CLASS 600

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 300

NPS	O	T	H	GROOVE #	P	E
1	125	36.6	81	R16	50.8	6.35
1½	155	36.6	84	R20	68.27	6.35
2	165	36.6	84	R23	82.55	7.92
2½	190	36.6	87	R26	101.6	7.92
3	210	36.6	87	R31	123.83	7.92
4	275	38.1	102	R37	149.23	7.92
6	355	47.7	117	R45	211.12	7.92
8	420	55.6	133	R49	269.88	7.92
10	510	63.5	152	R53	323.85	7.92
12	560	66.7	156	R57	381	7.92
14	605	69.9	165	R61	419.1	7.92
16	685	76.2	178	R65	469.9	7.92
18	745	82.6	184	R69	533.4	7.92
20	815	88.9	190	R73	584.2	9.53
24	940	101.6	203	R77	692.15	11.13

NPS	F	R	W	X	A	Tg
1	8.74	0.8	25.4	54	33.5	6.4
1½	8.74	0.8	25.4	70	48.3	6.4
2	11.91	0.8	27	84	60.3	6.4
2½	11.91	0.8	27	100	73	6.4
3	11.91	0.8	27	117	88.9	9.5
4	11.91	0.8	27	152	114.3	12.7
6	11.91	0.8	27	222	168.3	12.7
8	11.91	0.8	27	273	219.1	12.7
10	11.91	0.8	27	343	273	12.7
12	11.91	0.8	27	400	323.8	12.7
14	11.91	0.8	27	432	355.6	12.7
16	11.91	0.8	30.2	495	406.4	12.7
18	11.91	0.8	30.2	546	457.2	12.7
20	13.49	1.5	31.8	610	508	12.7
24	16.66	1.5	36.5	718	609.6	12.7

ORIFICE FLANGE DIMENSIONS OF WELD NECK RTJ, CLASS 900

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 300

NPS	O	T	H	GROOVE #	P	E
1	125	36.6	81	R16	50.8	6.35
1½	155	36.6	84	R20	68.27	6.35
2	165	36.6	84	R23	82.55	7.92
2½	190	36.6	87	R26	101.6	7.92
3	240	38.1	102	R31	123.83	7.92
4	290	44.5	114	R37	149.23	7.92
6	380	55.6	140	R45	211.12	7.92
8	470	63.5	162	R49	269.88	7.92
10	545	69.9	184	R53	323.85	7.92
12	610	79.4	200	R57	381	7.92
14	640	85.8	213	R62	419.1	11.13
16	705	88.9	216	R66	469.9	11.13
18	785	101.6	229	R70	533.4	12.7
20	855	108	248	R74	584.2	12.7
24	1040	139.7	292	R78	692.15	15.88

NPS	F	R	W	X	A	Tg
1	8.74	0.8	25.4	54	33.5	6.4
1½	8.74	0.8	25.4	70	48.3	6.4
2	11.91	0.8	27	84	60.3	6.4
2½	11.91	0.8	27	100	73	6.4
3	11.91	0.8	27	127	88.9	9.5
4	11.91	0.8	27	159	114.3	12.7
6	11.91	0.8	27	235	168.3	12.7
8	11.91	0.8	27	298	219.1	12.7
10	11.91	0.8	27	368	273	12.7
12	11.91	0.8	27	419	323.8	12.7
14	16.66	1.5	33.3	451	355.6	12.7
16	16.66	1.5	36.5	508	406.4	12.7
18	19.84	1.5	39.7	565	457.2	12.7
20	19.84	1.5	39.7	622	508	12.7
24	26.97	2.4	47.6	749	609.6	12.7

ORIFICE FLANGE DIMENSIONS OF WELD NECK RTJ, CLASS 1500

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 300

NPS	O	T	H	GROOVE #	P	E
1	150	38.1	83	R16	50.8	6.35
1½	180	38.1	89	R20	68.27	6.35
2	215	38.1	102	R24	95.25	7.92
2½	245	41.3	105	R27	107.95	7.92
3	265	47.7	117	R35	136.53	7.92
4	310	54	124	R39	161.93	7.92
6	395	82.6	171	R46	211.14	9.52
8	485	92.1	213	R50	269.88	11.13
10	585	108	254	R54	323.85	11.13
12	675	123.9	283	R58	381	14.27
14	750	133.4	298	R63	419.1	15.88
16	825	146.1	311	R67	469.9	17.48
18	915	162	327	R71	533.4	17.48
20	985	177.8	356	R75	584.2	17.48
24	1170	203.2	406	R79	692.15	20.62

NPS	F	R	W	X	A	Tg
1	8.74	0.8	25.4	52	33.5	6.4
1½	8.74	0.8	25.4	70	48.3	6.4
2	11.91	0.8	27	105	60.3	6.4
2½	11.91	0.8	27	124	73	6.4
3	11.91	0.8	27	133	88.9	9.5
4	11.91	0.8	27	162	114.3	12.7
6	13.49	1.5	28.6	229	168.3	12.7
8	16.66	1.5	33.3	292	219.1	12.7
10	16.66	1.5	33.3	368	273	12.7
12	23.01	1.5	39.7	451	323.8	12.7
14	26.97	2.4	44.4	495	355.6	12.7
16	30.18	2.4	50.8	552	406.4	12.7
18	30.18	2.4	50.8	597	457.2	12.7
20	33.32	2.4	54	641	508	12.7
24	36.53	2.4	58.7	762	609.6	12.7

ORIFICE FLANGE DIMENSIONS OF WELD NECK RTJ, CLASS 2500 RTJ

ORIFICE FLANGE DIMENSIONS OF WELD NECK RF, CLASS 300

2500#	T	H	GROOVE #	P	E
1	160	38.1	92	R18	60.33	6.35
1½	205	44.5	111	R23	82.55	7.92
2	235	50.8	127	R26	101.6	7.92
2½	265	57.2	143	R28	111.13	9.53
3	305	66.7	168	R32	127	9.53
4	355	76.2	190	R38	157.18	11.13
6	485	108	273	R47	228.6	12.7
8	550	127	318	R51	279.4	14.27
10	675	165.1	419	R55	342.9	17.48
12	760	184.2	464	R60	406.4	17.48

2500#	F	R	W	X	A	Tg
1	8.74	0.8	25.4	57	33.5	6.4
1½	11.91	0.8	27	79	48.3	6.4
2	11.91	0.8	27	95	60.3	6.4
2½	13.49	1.5	30.2	114	73	6.4
3	13.49	1.5	30.2	133	88.9	9.5
4	16.66	1.5	33.3	165	114.3	12.7
6	19.84	1.5	36.5	235	168.3	12.7
8	23.01	1.5	39.7	305	219.1	12.7
10	30.18	2.4	47.6	375	273	12.7
12	33.32	2.4	50.8	441	323.8	12.7

Product Details

General Description

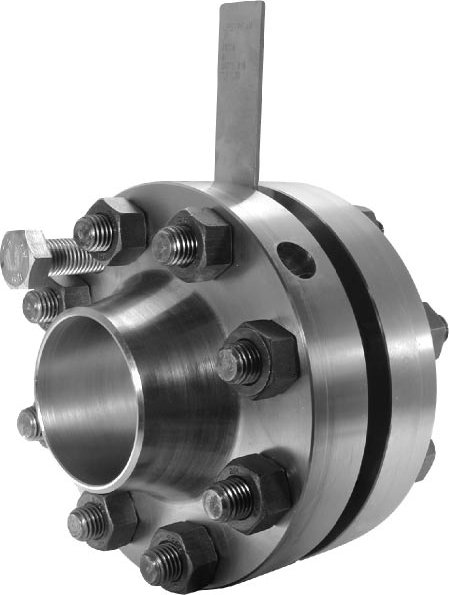

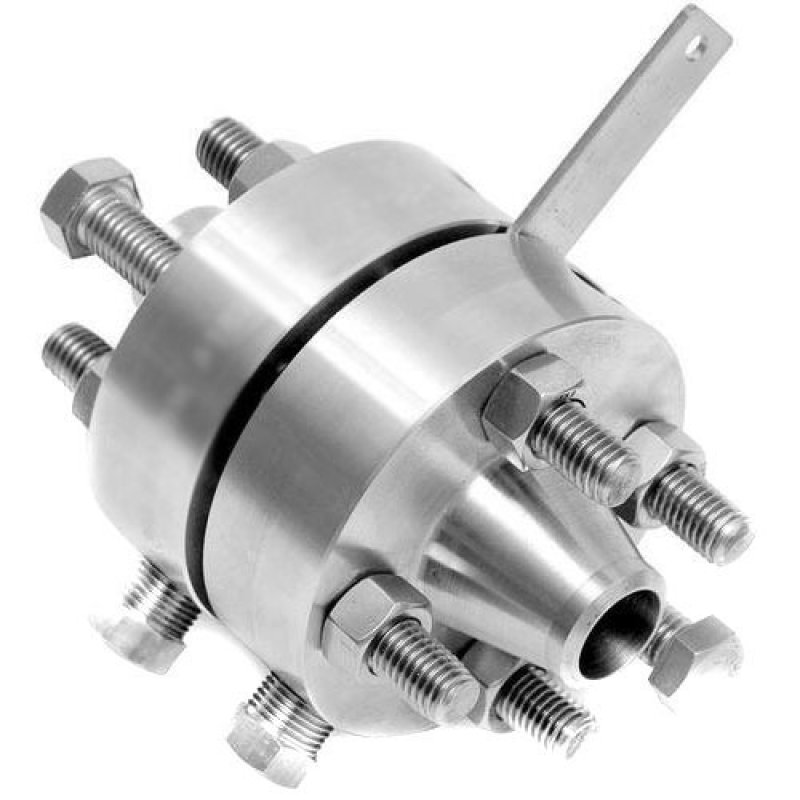

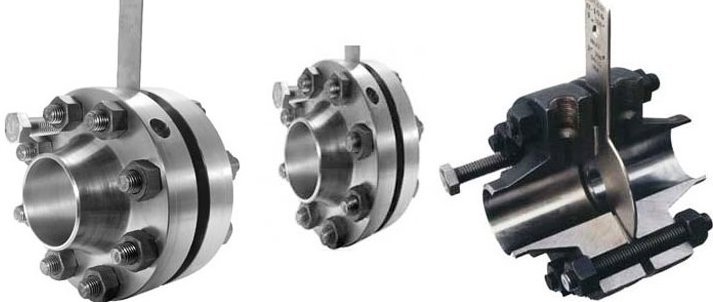

Orifice flanges are intended for use instead of standard pipe flanges when an orifice plate or flow nozzle must be installed. Pairs of pressure tappings are machined into the orifice flange,making separate orifice carriers or tappings in the pipe wall unnecessary.

Eathumetals orifice range of orifice flanges covers all standard sizes and ranges, and all common flange materials.

Flanges are available in socket weld or weld neck form, and are typically supplied with two ½” NPT tappings in each flange. Jacking screws to ensure ease of removal of the primary flow element are provided.

Orifice plates and flow nozzles can also be supplied. See eathu Product Data Sheets for more information.

Orifice flanges may also be supplied complete with bolting and gasket kits.

Materials

Eathumetals can supply orifice flanges in a wide range of standard and special materials, including:

ASTMA105 Carbon Steel

ASTM A350 LF2 Low Temp Carbon Steel

ASTM A182 F316 Stainless Steel

ASTM A182 F304 Stainless Steel

ASTM A182 F11 1% Cr ½% Mo

ASTM A182 F22 2¼% Cr 1% Mo

Size: 1/2" ~ 24" (DN15 ~ DN600)

Pressure Ratings: 300LB, 600LB, 900LB, 1500LB, 2500LB

Surface treatment: antirust oil, black / yellow / transparent / electric galvanized / hot galvanized

Packing: sea-worthy packing in wooden cases or on wooden pallets or as per customers' special requirement

Min Order Quantity: According to customer's requirement

Delivery: 30 days after receiving the formal order;

Payment: By T/T or L/C

Applications range: Petroleum, chemical industry, water conversancy, electric power, Natural gas, Coal gas, Water power and other pipeline projects.

More information is available upon receipt of your enquiry.

The function of the orifice flange is to measure the rate of the flow of the commodity through the piping system. Orifice flanges are easy to recognize because they have a hole drilled through the face of the flange perpendicular to the pipe. They also have an additional set of bolts called jack screws. These screws are used to help separate the flanges so inspection and/or replacement of the orifice plate can be performed. The orifice flange is a single component of the orifice flange union assembly. The orifice flange union is composed of two orifice flanges, an orifice plate, bolts, nuts, jack screws, and two gaskets.

inquire now

If you have any questions or needs about the product, please fill in the following form and we will contact you as soon as possible.

Pipe Fittings

Orific Flange

Specification:

Product Details

inquire now

contact us

products

message
