DIN Angle Globe Valve

DIN Angle Globe Valve

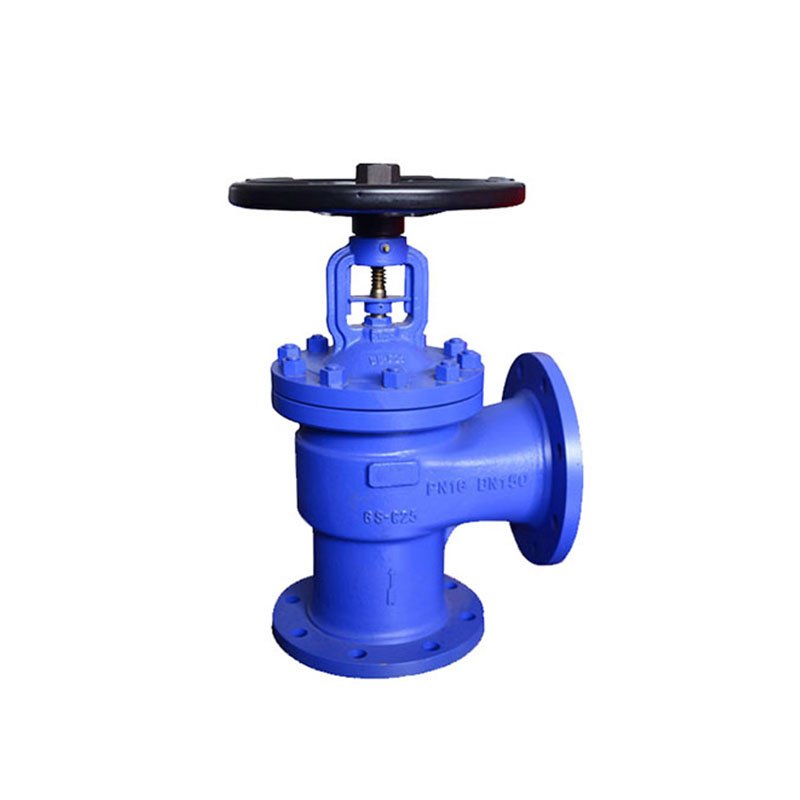

DIN cast iron angle globe valve

Face to face: DIN3202-F32

Flange drilled: DIN2532/2533

Normal pressure: PN10/16

Size: DN15-DN300

Material:

Cast iron or ductile iron body

Brass or bronze seat

Cast iron or ductile iron disc

Stainless steel stem

Cast iron or ductile bonnet

Cast iron or ductile hand wheel

The following are some of the typical applications of Cast Iron Angle globe valves:

* Cooling water systems where flow needs to be regulated

* Fuel oil system where flow is regulated and leaktightness is of importance

* High-point vents and low-point drains when leaktightness and safety are major considerations

* Feedwater, chemical feed, condenser air extraction, and extraction drain systems

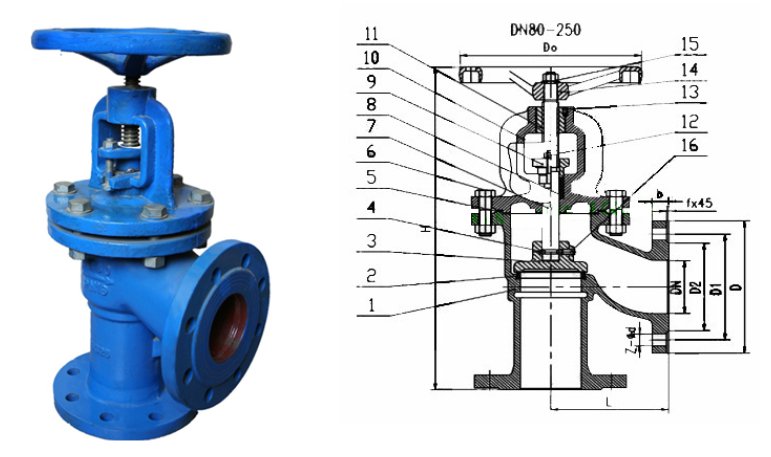

MATERIALS
ITEM	PARTS NAME	MATERIAL
1	BODY	CAST IRON
2	SEAT RING	BRASS/STAINLESS STEEL
3	SEAT RING	CAST IRON+BRASS/STAINLESS STEEL
4	GASKET	GRAPHITE
5	BOLT NUT	CARBON STEEL
6	STEM	STAINLESS STEEL
7	PACKING	GRAPHITE
8	GLAND	CAST IRON
9	BONNET	CAST IRON
10	STEM NUT	BRASS
11	BOLT NUT	CARBON STEEL
12	BOLT	CARBON STEEL
13	WHEEL	CAST IRON
14	NUT GASKET	CARBON STEEL
15	BOLT	CARBON STEEL

Dimensions (mm) of DIN Angle Globe Valve:
DN	L	D	D1	D2	b	Z-∮d	f	H	DO
15	90	95	65	47	14	4-14	2	260	80
20	95	105	75	58	16	4-14	2	280	80
25	100	115	85	68	16	4-14	2	290	100
32	105	140	100	78	18	4-14	2	315	120
40	115	150	110	88	18	4-18	3	345	120
50	125	165	125	102	20	4-18	3	370	140
65	145	185	145	122	20	4-18	3	415	160
80	155	200	160	138	22	8-18	3	480	240
100	175	220	180	158	24	8-18	3	545	240
125	200	250	210	188	26	8-18	3	620	280
150	225	285	240	212	26	8-23	3	700	320
200	275	340	295	268	30	12-23	3	845	360
250	325	405	355	320	32	12-27	3	1025	400
