AWWA C509 AWWA C515 Cast iron Gate Valve
Application:
1. Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150,SABS 664
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2" - 24"
4. Material: CI, DI, STAINLESS STAIN,BRASS,BRONZE
5. Pressure:CLASS 125-300/PN10-25/200-300PSI
6. Driving mode: hand wheel, bevel gear, gear
7. Design and Manufacture: Conform to BS5163
8. Inspection &Test API598
9. End Standard ASME B 16.5 150LB
10.Face To Face AWWA C509/C515/BS5163/ASME B16.10/ISO5752
11.Driving mode: hand wheel, square cover
Specification:

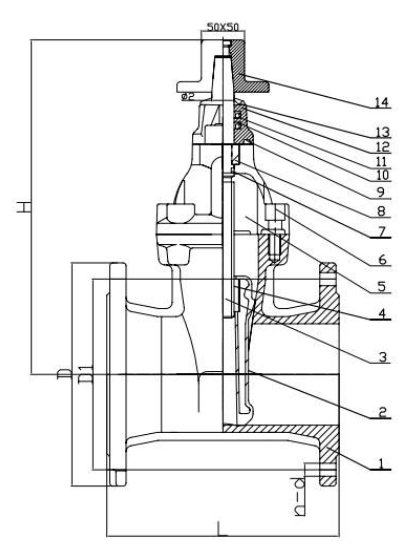

Parts and Materials of AWWA C509 AWWA C515 Cast iron Gate Valve:
| No. | Part Name | Material |  |
| 1 | Body | EN-GJS-500-7 | |
| 2 | Rubber Disc | EPDM/NBR+DI. | |
| 3 | Stem | SS410 | |
| 4 | Nut | BRONZE | |
| 5 | Up Body | EN-GJS-500-7 | |
| 6 | Blot | Q235A | |
| 7 | Seat | EPDM/NBR | |
| 8 | Thrust Bearing | BRONZE | |
| 9 | O-Ring | NBR | |
| 10 | V-Ring | NBR | |
| 11 | V-Ring | NBR | |
| 12 | Bonnet | EN-GJS-500-7 | |
| 13 | Dust Shield | NBR | |
| 14 | Cap | EN-GJS-500-7 |
Dimensions (mm) of AWWA C509 AWWA C515 Cast iron Gate Valve:
| DN | L | Φ2 | D | D1 | n-d | D0 | H | Kg |
| 50 | 178 | 18 | 150 | 120.7 | 4-19 | 160 | 220 | 10.5 |
| 65 | 190 | 18 | 180 | 139.7 | 4-19 | 180 | 235 | 12.5 |
| 80 | 203 | 22 | 190 | 152.4 | 4-19 | 200 | 280 | 16 |
| 100 | 229 | 22 | 230 | 190.5 | 8-19 | 200 | 320 | 21 |
| 125 | 254 | 26 | 255 | 215.9 | 8-22 | 250 | 360 | 29 |
| 150 | 267 | 26 | 280 | 241.3 | 8-22 | 250 | 400 | 35 |
| 200 | 292 | 28 | 345 | 298.5 | 8-22 | 320 | 510 | 57 |
| 250 | 330 | 32 | 405 | 362 | 12-26 | 350 | 600 | 92 |
| 300 | 356 | 32 | 485 | 431.8 | 12-26 | 350 | 675 | 129 |
| 350 | 381 | 33.5 | 535 | 476.3 | 12-29 | 460 | 820 | 180 |
| 400 | 406 | 38.5 | 595 | 539.8 | 16-26 | 460 | 890 | 240 |
| 450 | 432 | 43.5 | 635 | 577.9 | 16-32 | 530 | 1080 | 320 |
| 500 | 457 | 48.5 | 700 | 635 | 20-32 | 530 | 1220 | 470 |
| 600 | 508 | 58 | 815 | 749.3 | 20-35 | 625 | 1340 | 640 |
Product Details

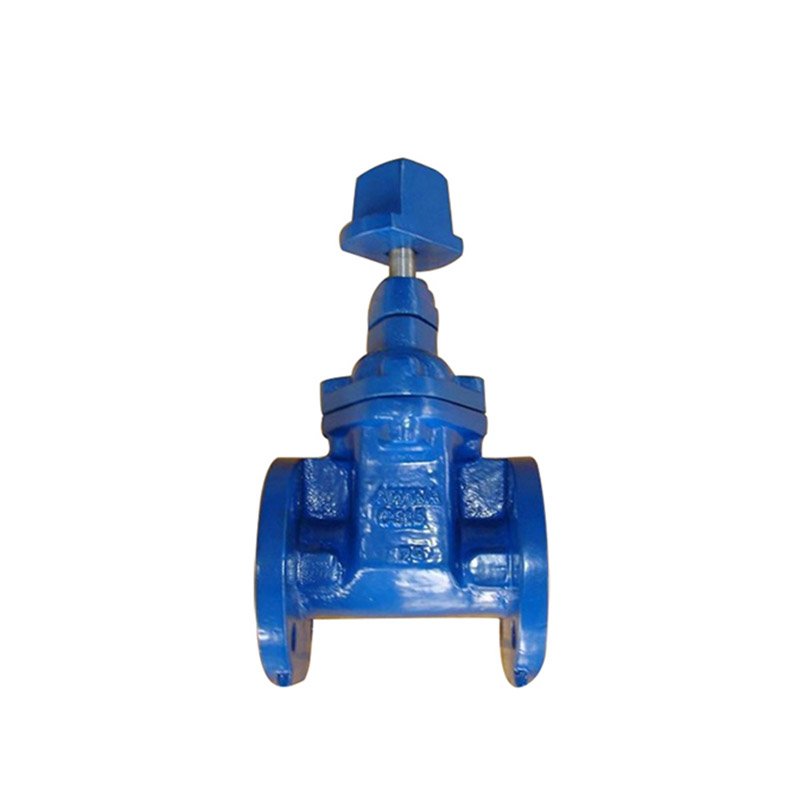

AWWA C509 AWWA C515 Cast iron Gate Valve
1. Standards: AWWA C515, DIN3352 F4/F5, BS5163, BS5150,SABS 664
2. Type: OS&Y,NRS
3. Size: DN50-DN600/2" - 24"
4. Material: CI, DI, STAINLESS STAIN,BRASS,BRONZE
5. Pressure:CLASS 125-300/PN10-25/200-300PSI
6. Driving mode: hand wheel, bevel gear, gear
7. Design and Manufacture: Conform to BS5163
8. Inspection &Test API598
9. End Standard ASME B 16.5 150LB
10.Face To Face AWWA C509/C515/BS5163/ASME B16.10/ISO5752
11.Driving mode: hand wheel, square cover
