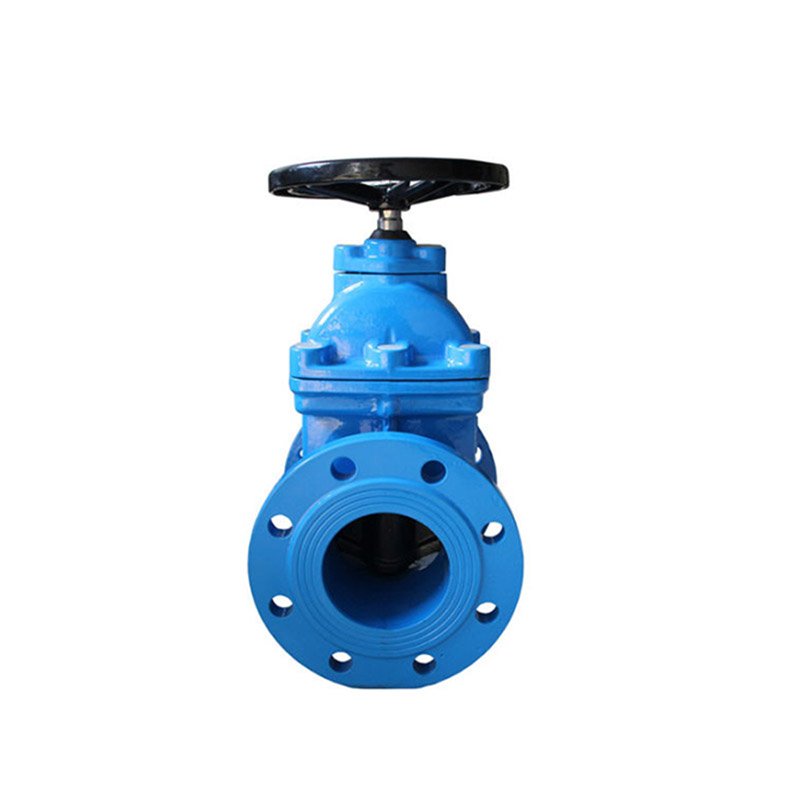

BS5150 Non-rising Stem Flanged End Gate Valve
Application:
BS5150 Non-rising Stem Flanged End Gate Valve
Design and manufacture conform to BS5150 PN16
Face to face dimensions conform to BS EN558-1 PN16
Flange dimensions conform to EN1092-2
Testing conform to BS6755 / BS EN12266-1
Epoxy coating or Special coating for potable water
Operated by Handwheel operated (gear box be optional)
Share to:
Specification:

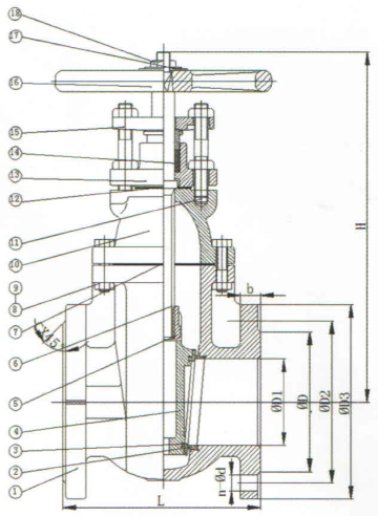

Parts and Materials of BS5150 Non-rising Stem Flanged End Gate Valve:
| NO | PART NAME | METERIAL |  | |||||
| 1 | BODY | CAST IRON, DUCTILE IRON | ||||||
| 2 | BODY SEAT | BRONZE,BRASS | ||||||
| 3 | WEDGE SEAT | BRONZE,BRASS | ||||||
| 4 | WEDGE | CAST IRON, DUCTILE IRON | ||||||
| 5 | STEM NUT | BRONZE,BRASS | ||||||
| 6 | STEM | STAINLESS STEEL | ||||||
| 7 | GASKET | GRAPHITE | ||||||
| 8 | BONNET BOLT | CARBON STEEL | ||||||
| 9 | NUT | CARBON STEEL | ||||||
| 10 | BONNET | CAST IRON, DUCTILE IRON | ||||||
| 11 | BOLTS | CARBON STEEL | ||||||
| 12 | GASKET | GRAPHITE | ||||||
| 13 | STUFFING BOX | CAST IRON, DUCTILE IRON | ||||||
| 14 | PACKING | GRAPHITE | ||||||
| 15 | GLAND FOLLOWER | CAST IRON, DUCTILE IRON | ||||||
| 16 | HAND WHEEL | CARBON STEEL,DUCTILE IRON | ||||||
| 17 | WASHER | CARBON STEEL | ||||||
| 18 | HAND WHEEL NUT | CARBON STEEL | ||||||
Dimensions (mm) and weight (kgs) of BS5150 Non-rising Stem Flanged End Gate Valve:
| DN | L | H | D | D1 | D2 | b | c | n-ød | |||
| 50 | 178 | 278 | 102 | 125 | 165 | 20 | 3 | 4-ø18 | |||
| 65 | 190 | 312 | 122 | 145 | 185 | 20 | 3 | 4-ø18 | |||
| 80 | 203 | 327 | 138 | 160 | 200 | 22 | 3 | 8-ø18 | |||
| 100 | 229 | 400 | 158 | 180 | 220 | 24 | 3 | 8-ø18 | |||
| 125 | 254 | 489 | 188 | 210 | 250 | 26 | 3 | 8-ø18 | |||
| 150 | 267 | 544 | 212 | 240 | 285 | 26 | 3 | 8-ø22 | |||
| 200 | 292 | 632 | 268 | 295 | 340 | 30 | 3 | 12-ø22 | |||
| 250 | 330 | 772 | 320 | 355 | 405 | 32 | 3 | 12-ø26 | |||
| 300 | 356 | 863 | 378 | 410 | 460 | 32 | 4 | 12-ø26 | |||
| 350 | 381 | 1000 | 438 | 470 | 520 | 36 | 4 | 16-ø26 | |||
| 400 | 406 | 1070 | 490 | 525 | 580 | 38 | 4 | 16-ø30 | |||
| 450 | 432 | 1180 | 550 | 585 | 640 | 40 | 4 | 20-ø30 | |||
| 500 | 457 | 1240 | 610 | 650 | 715 | 42 | 4 | 20-ø33 | |||
