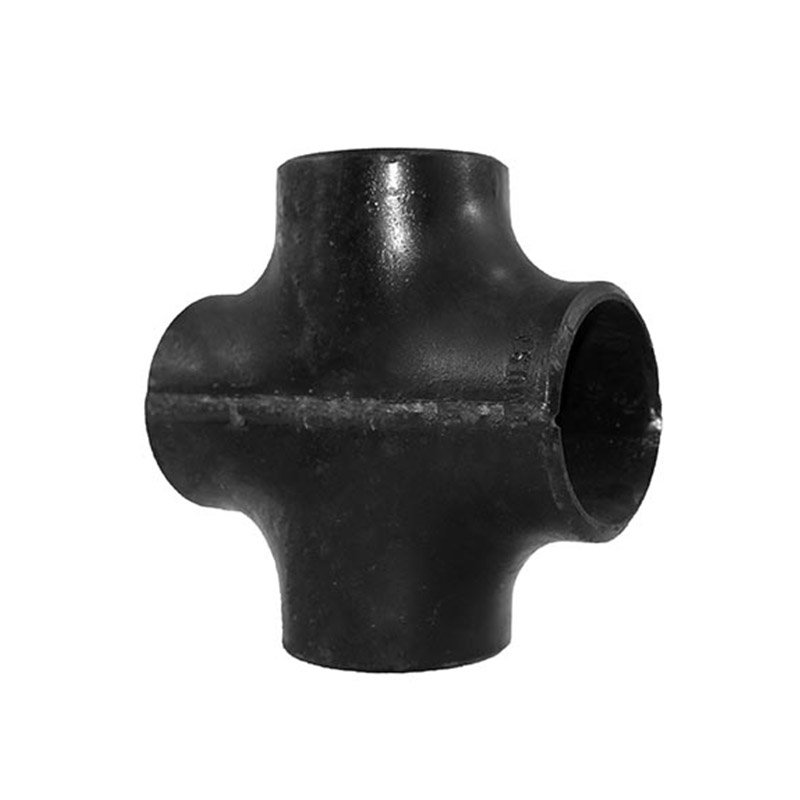

Equal Tee & Cross
Application:
An equal tee also called straight tee.It is a buttweld fitting used to branch pipeline.If the main pipe and branch pipe have the same bore size,then an equal tee is necessary.The equal cross has almost the same property as equal tee,but can branch pipeline to 4 way,so it is also called 4 way cross pipe fitting or 4 way cross tee.Same as other butt welding fittings,butt welding tee and butt weld equal cross is also seamless up to 24 inches, welded for tee sizes above 24 inches.Buttweld tees and cross are manufactured according to ASME B16.9 (carbon and alloy) and MSS SP 43 (stainless steel and nickel alloy).
Specification:
ASME B16.9: Straight Tee & Cross

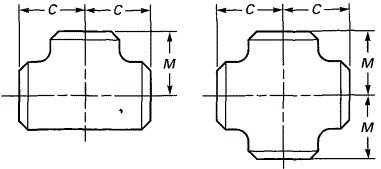

1. Technical Drawings of Straight Tee & Cross(ASME B16.9)
2. Dimensions of Straight Tee & Cross(ASME B16.9)
| Nominal Pipe | Outside | Center to End | |
| Size(NPS) | Diameter | Run, C | Outlet, M |
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1-1/4" | 42.2 | 48 | 48 |
| 1-1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2-1/2" | 73 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3-1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457 | 343 | 343 |
| 20" | 508 | 381 | 381 |
| 22" | 559 | 419 | 419 |
| 24" | 610 | 432 | 432 |
| 26" | 660 | 495 | 495 |
| 28" | 711 | 521 | 521 |
| 30" | 762 | 559 | 559 |
| 32" | 813 | 597 | 597 |
| 34" | 864 | 635 | 635 |
| 36" | 914 | 673 | 673 |
| 38" | 965 | 711 | 711 |
| 40" | 1016 | 749 | 749 |
| 42" | 1067 | 762 | 711 |
| 44" | 1118 | 813 | 762 |
| 46" | 1168 | 851 | 800 |
| 48" | 1219 | 889 | 838 |
*All dimensions are in mm unit(inch unit data sheet is also available upon request).
*Check the tolerances and materials for butt welding pipe fittings from "Price List and Techinical"
*Tolerances of dimensions are in conformance with ASME B16.9
Product Details
Size: 1/2"-80"/DN15-DN2000
Technical: Forged and pushing
Material: Carbon Steel, Stainless Steel, Alloy Steel
Carbon Steel:ASTM, A234WPB, A234WPC, A420WPL6, Q235,10#, A3, Q235A, 20G, 16Mn, DIN St37, St45.8, St52.4, St.35.8, St.35.8.
Stainless Steel:1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti,00Cr17Ni14Mo2 304 304L 316 316L
Alloy Steel:16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70
Standard: ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97
Model: 45°/ 90°/180 LR/SR Elbow, Reducers, Tee, Bends, Cap, Cross.
Type: Seam Or Seamless
End: beveled end
Surface: Black Paint/Rust-proof Oil/Hot Dipped Galvanized
Wall Thickness: SCH10/10S, SCH20/20S, STD, SCH40/40S, XS, SCH80,SCH100, SCH120, SCH140, SCH160, XXS etc.(for ANSI),SGP(for JIS)
Elbow Angles: 30/45/60/90/180°
Connection: Welding
Shape:Equal, Reducing
Certificate: ISO -9001:2000, API, CCS
Application:Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc
Packing: Plywood Pallets/ Wooden Case Or As Per your Specification
MOQ: to be negotiated.
Sample: Available
Price: >>Get newest price list(price list and technical)
Service: Customized OEM
Pakage: wooden case & pallet
Payment term: T/T or L/C
Delivery:7-30days according to order quantity.
