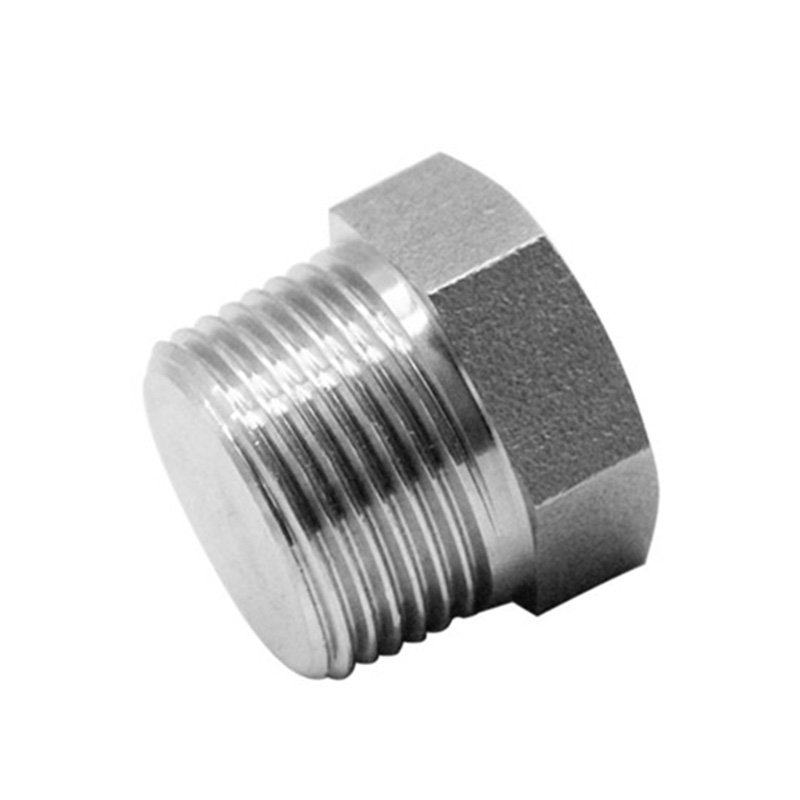

Hexagon Head Plug
Application:
Size: 1/8"-4" threaded and socket weld type
Pressure:
Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G) ,Socket Welding
Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel
Share to:
Specification:

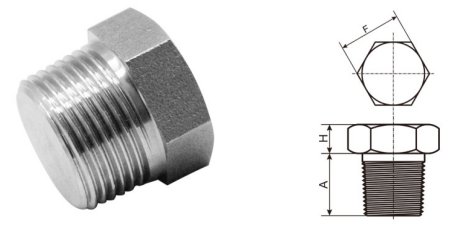

Hexagon Head Plug Dimension
| DN | Nom. | Length | Square Head Plug | Round Head Plug | Hex.Head Plug&Bushing | ||||
| Pipe | (Min) | Height of | Width Flat | Nominal | Length | Width Flat | Hex.Height(Min.） | ||
| Size | A | Square | (Min.) | Diameter | (Min.) | (Nom.) | |||
| (Min.) | C | of Head(Nom) | E | F | Bushing | Plug | |||
| B | D | G | H | ||||||
| 6 | 1/8" | 10 | 6 | 7 | 10 | 35 | 6 | ||
| 8 | 1/4" | 11 | 6 | 10 | 14 | 41 | 16 | 3 | 6 |
| 10 | 3/8" | 13 | 8 | 11 | 18 | 41 | 18 | 4 | 8 |
| 15 | 1/2" | 14 | 10 | 14 | 21 | 44 | 22 | 5 | 8 |
| 20 | 3/4" | 16 | 11 | 16 | 27 | 44 | 27 | 6 | 10 |
| 25 | 1" | 19 | 13 | 21 | 33 | 51 | 36 | 6 | 10 |
| 32 | 1-1/4" | 21 | 14 | 24 | 43 | 51 | 46 | 7 | 14 |
| 40 | 1-1/2" | 21 | 16 | 28 | 48 | 51 | 50 | 8 | 16 |
| 50 | 2" | 22 | 18 | 32 | 60 | 64 | 65 | 9 | 18 |
| 65 | 2-1/2" | 27 | 19 | 36 | 73 | 70 | 75 | 10 | 19 |
| 80 | 3" | 28 | 21 | 41 | 89 | 70 | 90 | 10 | 21 |
| 100 | 4" | 32 | 25 | 65 | 114 | 76 | 115 | 13 | 25 |
(1) Dimensions in Millimeters.
(2) CAUTIONARY NOTE REGARDING HEX BUSHING.Hex head bushing if one-size reduction should not be used in services where they might be subject to harmful loads and forces other than internal pressure.
