Pipe Fittings

Reducer

Application:

Size: 1/2"-80"/DN15-DN2000

Material: Carbon Steel, Stainless Steel, Alloy Steel

Standard: ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97

Type: Seam Or Seamless

End: beveled end

Surface: Black Paint/Rust-proof Oil/Hot Dipped Galvanized

Wall Thickness: SCH10/10S, SCH20/20S, STD, SCH40/40S, XS, SCH80,SCH100, SCH120, SCH140, SCH160, XXS etc.(for ANSI),SGP(for JIS)

Connection: Welding

Specification:

ASME B16.9: Pipe Reducers

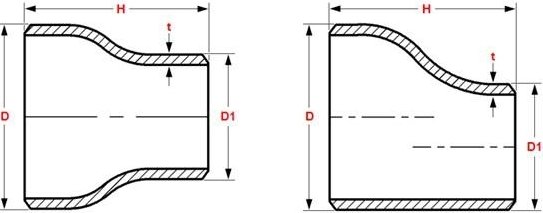

Dimensions of Recucers - ASME B16.9

NPS	OD at Bevel		End-to- End, H
NPS	Large End, D	Small End,D1	End-to- End, H
3/4×1/2	26.7	21.3	38
3/4x3/8	26.7	17.3	38
1×3/4	33.4	26.7	51
1×1/2	33.4	21.3	51
1-1/4×1	42.2	33.4	51
1-1/4×3/4		26.7
1-1/4×1/2		21.3
1-1/2×1-1/4	48.3	42.2	64
1-1/2×1		33.4
1-1/2×3/4		26.7
1-1/2×1/2		21.3
2×1-1/2	60.3	48.3	76
2×1-1/4		42.2
2×1		33.4
2×3/4		26.7
2-1/2×2	73	60.3	89
2-1/2×1-1/2		48.3
2-1/2×1-1/4		42.2
2-1/2×1		33.4
3×2-1/2	88.9	73	89
3×2		60.3
3×1-1/2		48.3
3×1-1/4		42.2
3-1/2×3	101.6	88.9	102
3-1/2×2-1/2		73
3-1/2×2		60.3
3-1/2×1-1/2		48.3
3-1/2×1-1/4		42.2
4×3-1/2	114.3	101.6	102
4×3		88.9
4×2-1/2		73
4×2		60.3
4×1-1/2		48.3
5×4	141.3	114.3	127
5×3-1/2		101.6
5×3		88.9
5×2-1/2		73
5×2		60.3
6×5	168.3	141.3	140
6×4		114.3
6×3-1/2		101.6
6×3		88.9
6×2-1/2		73
8×6	219.1	168.3	152
8×5		141.3
8×4		114.3
8×3-1/2		101.6
10×8	273	219.1	178
10×6		168.3
10×5		141.3
10×4		114.3
12×10	323.8	273	203
12×8		219.1
12×6		168.3
12×5		141.3
14×12	355.6	323	330
14×10		273
14×8		219.1
14×6		168.3
16×14	406.4	355.6	356
16×12		323.8
16×10		273
16×8		219.1
18×16	457.2	406.4	381
18×14		355.6
18×12		323.8
18×10		273
20×18	508	457.2	508
20×16		406.4
20×14		355.6
20×12		323.8
22×20	558.8	508	508
22×18		457.2
22×16		406.4
22×14		355.6
24×22	609.6	558.8	508
24×20		508
24×18		457.2
24×16		406.4
26×24	660	610	610
26×22		559
26×20		508
26×18		457
28×26	711	660	610
28×24		610
28×20		508
28×18		457
30×28	762	711	610
30×26		660
30×24		610
30×20		508
32×30	813	762	610
32×28		711
32×26		660
32×24		610
34×32	864	813	610
34×30		762
34×26		660
342×4		610
36×34	914	864	610
36×32		713
36×30		762
36×26		660
36×24		610
38×36	965	914	610
38×34		864
38×32		813
38×30		762
38×28		711
38×26		660
40×38		965	610
40×36	1016	914
40×34		864
40×32		813
40×30		762
42×40		1016	610
42×38	1067	965
42×36		914
42×34		864
42×32		813
42×30		762
44×42	1118	1067	610
44×40		1016
44×38		965
44×36		914
46×44	1168	1118	711
46×42		1067
46×40		1016
46×38		965
48×46	1219	1168	711
48×44		1118
48×42		1067
48×40		1016

*All dimensions are in mm unit(inch unit data sheet is also available upon request).

*Check the tolerances and materials for butt welding pipe fittings from "Price List and Techinical"

*Tolerances of dimensions are in conformance with ASME B16.9

Product Details

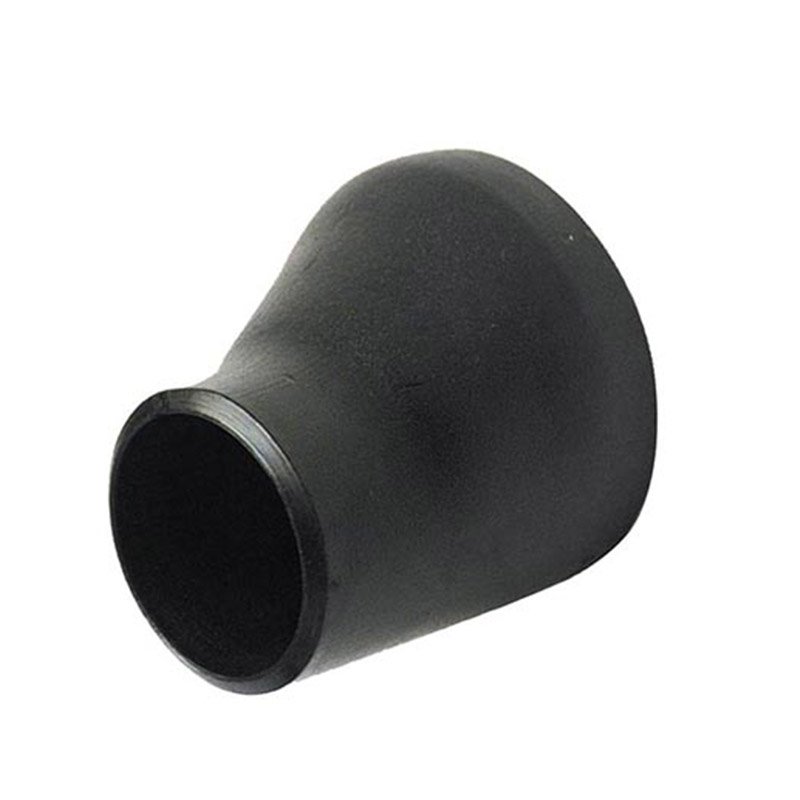

A reducer is a pipe coupling with a larger bore size at one end and a smaller bore size at the other end.It is used to change the flow rate in pipeline.Base on connection ways,there are 3 types of reducers :threaded reducer ,grooved reducer and butt welding reducer.

Generally ,the butt welded reducer is made from pipes.Put a fixed length steel pipe on a conical mould,and its shape is changed by pressing down.Reducing one end or extend one end,then a welded reducer is formed.For big size reducers or low pressure welded reducers,they are made from steel coils.Rolling up the steel plate to a reducer shape,and welding them together.

What is the difference between a concentric and eccentric reducer?

The Concentric reducer two ends are centered in a line,while the Eccentric reducer have the offset center of both ends and has an edge that is parallel to the pipe.Concentric pipe reducer is used when the pipe is vertical and eccentric reducer is ofen used when the pipes are lay on a pipe rack,because of the parallel edge,it could allow the reducer and pipe next to the walls or groud with out taking up space.

Size: 1/2"-80"/DN15-DN2000

Technical: Forged and pushing

Material: Carbon Steel, Stainless Steel, Alloy Steel

Carbon Steel:ASTM, A234WPB, A234WPC, A420WPL6, Q235,10#, A3, Q235A, 20G, 16Mn, DIN St37, St45.8, St52.4, St.35.8, St.35.8.

Stainless Steel:1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti,00Cr17Ni14Mo2 304 304L 316 316L

Alloy Steel:16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1,A335P22 St45.8, ASTM A860 WPHY X42 X52 X60 X70

Standard: ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312, B2312, B2316 ASTM A403 MSS SP-43, SP-83, SP-97

Model: 45°/ 90°/180 LR/SR Elbow, Reducers, Tee, Bends, Cap, Cross.

Type: Seam Or Seamless

End: beveled end

Surface: Black Paint/Rust-proof Oil/Hot Dipped Galvanized

Wall Thickness: SCH10/10S, SCH20/20S, STD, SCH40/40S, XS, SCH80,SCH100, SCH120, SCH140, SCH160, XXS etc.(for ANSI),SGP(for JIS)

Elbow Angles: 30/45/60/90/180°

Connection: Welding

Shape:Equal, Reducing

Certificate: ISO -9001:2000, API, CCS

Application:Petrochemical & Gas industry, Power industry, Valve industry, Water works, Shipbuilding industry, Construction etc

Packing: Plywood Pallets/ Wooden Case Or As Per your Specification

MOQ: to be negotiated.

Sample: Available

Price: >>Get newest price list(超链接至price list and technical)

Service: Customized OEM

Pakage: wooden case & pallet

Payment term: T/T or L/C

Delivery:7-30days according to order quantity.
