Pipe Fittings

Specification:

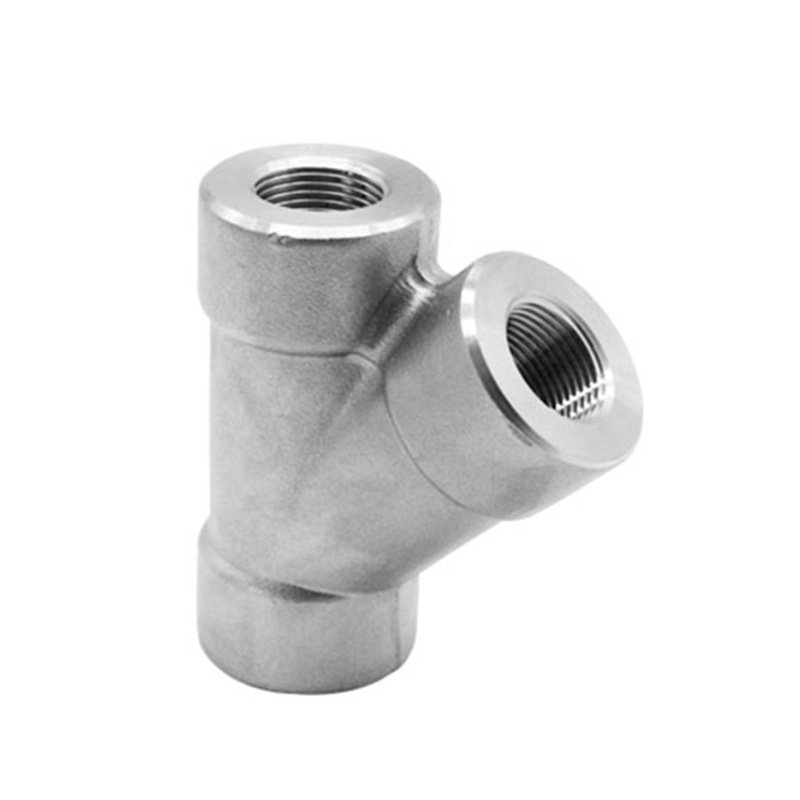

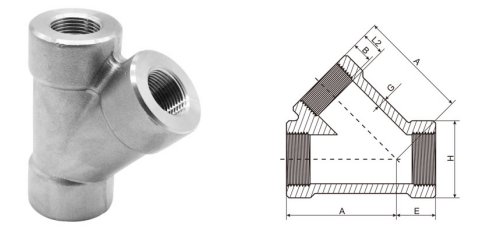

Threaded Lateral Dimension

2000LB

DNNom.PipeLength of Thread(Min.)AE
SizeL2³(Min.)
151/2"10.913.646203.1833
203/4"12.713.955233.1838
251"14.717.365263.6846
321-1/4"171873313.8956
401-1/2"17.818.482354.0162
502"1919.2113424.2775
652-1/2"23.628.9136565.6192


3000LB

DNNom.PipeLength of Thread(Min.)AE
SizeL2³(Min.)
151/2"10.913.655234.0938
203/4"12.713.965264.3246
251"14.717.373314.9856
321-1/4"171882355.2862
401-1/2"17.818.4113425.5675
502"1919.2136567.1484

(1) Dimensions in Millimeters.

(2) Dimensions refer to ANSI B16.11

(3) Dimensions B is minimum length of perfect thread.

     The length of useful thread(B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads(ANSI/ASME B1.20.1)

(4) Dimensions of BSP and PTare available if required.

(5) Dimensions may vary according to the customer's and manufacturer's requirement.
