Pipe Fittings

Specification:

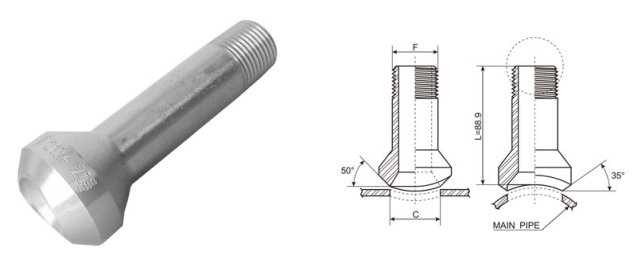

Nipple Outlet Dimension

Outlet PipeCF
3000lb6000lb
1/2"23.813.821.3
3/4"30.218.926.7
1"36.524.333.4
1-1/4"44.532.542.2
1-1/2"50.838.148.3
2"65.149.260.3

(1) Dimensions in Millimeters.

(2) Dimension B is minimum length of perfect thread. The length of useful thread(B plus threads with fully formed roots and flat crests)shall not be less than L2(effective length of external thread)required by American National Standard for Pipe Threads ANSI/ASME B1.20.1)
