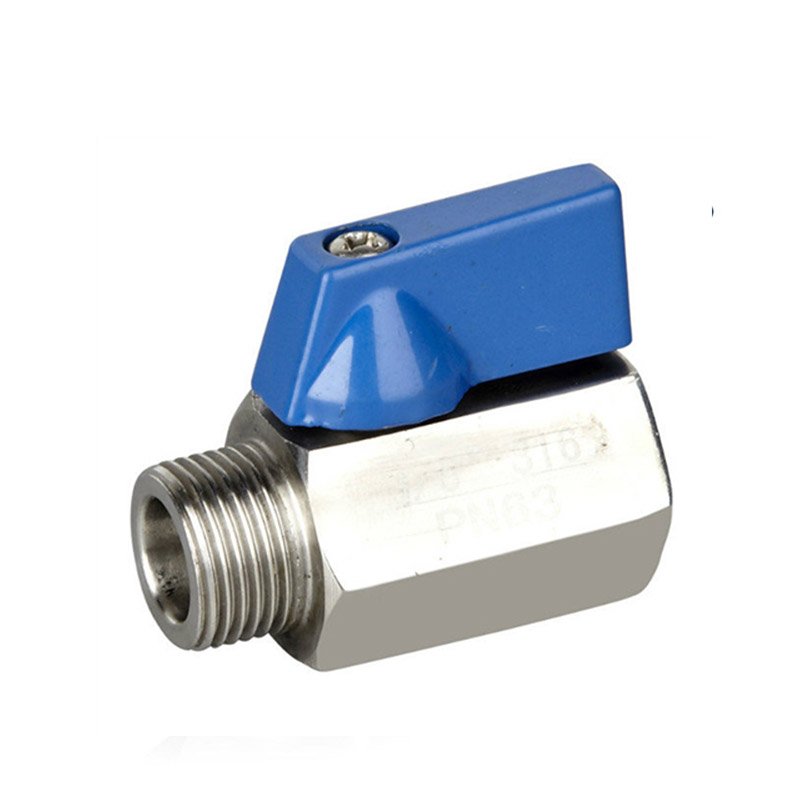

Mini Ball Valve with Lever Handle
Application:
Mini Ball Valve with Lever Handle
Size:1/4" 3/8" 1/2"
Material:Stainless steel
Field of Application:Water-Oil-Gas
Working Pressure:16Bar/ 232Psi
Connection:Male-Male, Female-Female, Male-Female
Work Temperature:-20℃ to 120℃
Share to:

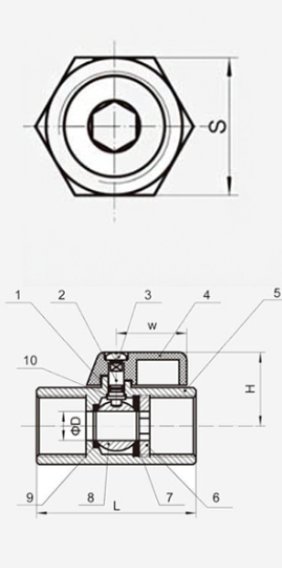

Specification:
| ITEM | DESIGNATION | QTY | MATERIAL |  |
| 1 | O-RING | 2 | VITON | |
| 2 | STEM | 1 | 304/316 | |
| 3 | BOLT | 1 | 304 | |
| 4 | LEVER | 1 | ALUMINUM ALLOY | |
| 5 | BODY | 1 | CF8/CF8M | |
| 6 | CAP | 1 | CF8/CF8M | |
| 7 | BALL SEAT(A) | 1 | PTFE | |
| 8 | BALL | 1 | 304/316 | |
| 9 | BALL SEAT(B) | 1 | PTFE | |
| 10 | THRUST WASHER | 1 | PTFE |
| EIMENSIONS (mm) | |||||
| ITEM \ SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| D | 8 | 8 | 9.2 | 12.5 | 15 |
| L | 39 | 41 | 46 | 55 | 65 |
| H | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| S | 21 | 21 | 24.5 | 31 | 38 |
