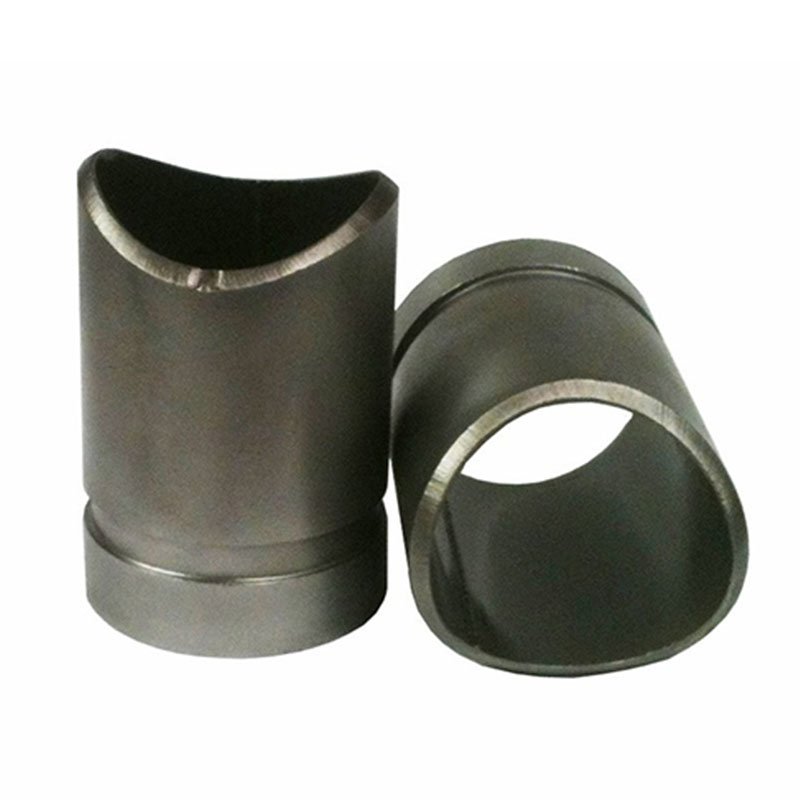

Grooved Welded Outlet
Application:
Grooved Welded Outlet
Groove ：AWWA C606 and ISO 6182-12
Material: Cabon Steel S/10, S/40 Stainless Steel S/10, S/20 Material for forging
Surface Treatment: anti-rust oil or Electro Galvanized
Applied Pipe Type: ASTM A53 Grade A or B / ASTM A 106-B / KSD 3507 / KSD 3562 / KSD 3576
For Use With: Air, Natural Gas, Oil, Steam, Water
Specifications Met: ANSI/ASME B16.11, MSS SP-97
Specification:
Grooved Welded Outlet Dimension
| Size | In | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 6" | 8" |
| Pipe Run Size | In | 1-1/4"-8" | 1-1/2"-8" | 2"-8" | 2-1/2"-8" | 3-8" | 4-8" | 6-8" | 8" |
| A | In | 1.66 | 1.9 | 2.375 | 2.875 | 3.5 | 4.5 | 6.625 | 8.625 |
| L | In | 2.969 | 2.969 | 2.969 | 2.969 | 2.969 | 3.976 | 3.976 | 4 |
Note:
Samples send can be accepted.
Eathu MOQ: 1000pcs for each size.
Product Details
Eathu are one of the prominent Manufacturer and exporters of superior range of Grooved Pipes. Include the grooved pipe, grooved pipe fittings, grooved valve and grooved welded outlet. Our range is extensively used by the clients based at various locations of the world. These Pipes are designed for use with all types of fasteners, couplings and fittings. Grooved pipes carries high fire fighting capacity and widely used in the Water Treatment, Oil exploration, Fire protection and Plumbing operations. These pipes are appreciated for the sturdy construction, high tensile strength and geometrical accuracy.
The Grooved Welded Outlet we developed are ranging from 1″ to 12″. Grooved Welded Outlet allow you to create a grooved outlet anywhere along a pipe. They are also known as branch connectors and are comparable to grooved letout. To install, drill a hole in your pipe to match the fitting's pipe size and weld in place.
●Grooved Welded Outlet Fittings For Fire Protection & Other Low pressure pipeline system.
●Grooved Welded Outlet Fitting are rated for 12.7（300psi）when used in fire sprinkler system applications.
