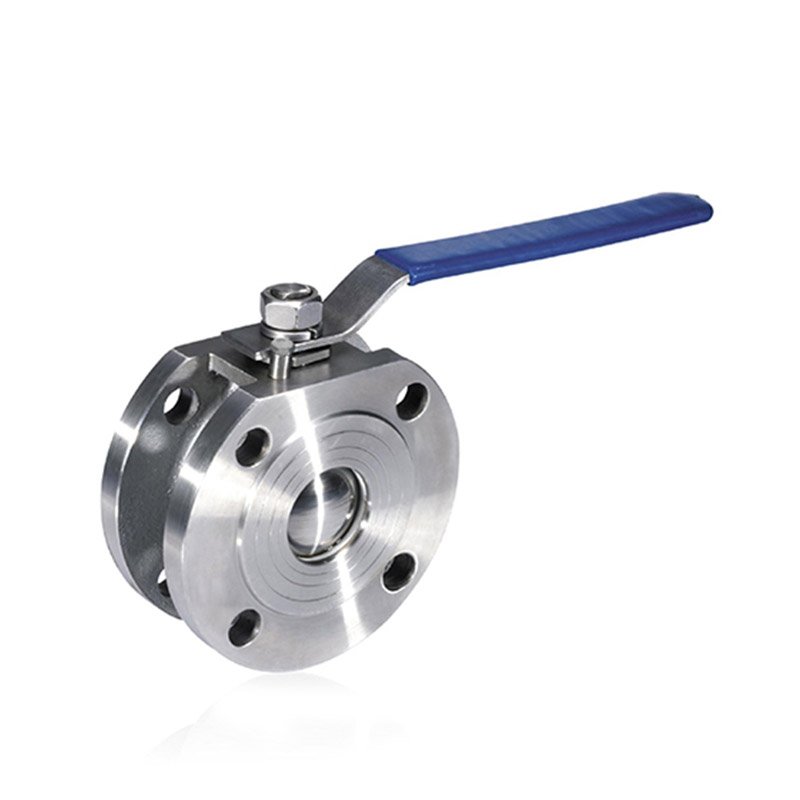

Wafer Type Ball Valve
Application:
1PC Wafer Flanged Ball Valve With Mouting Pad (DIN)
Material：304, 316, 1.4308, 1.4408, CF8, CF8M, WCB
Model：1PC, ISO5211 mounting pad
Connetion：Flange
Medium：Water, Oil, Gas
Pressure: PN16 Full Port
Investment Casting
Blow-out-Proof Stem
PED97/23/PE(CE0036) Approved
Anti-Static device (option)
Design:EN12516
Locking Device Handle (option)
End Flange:DIN2542-DIN2545
Inspection Testing:API1598,EN12266
Inquire Now
Share to:
Specification:
| ITEM | DESIGNATION | MATERIAL |  |
| 1 | BODY | CF8/CF8M | |
| 2 | CAP | CF8/CF8M | |
| 3 | BALL | CF8/CF8M | |
| 4 | SEAL | RPTFE | |
| 5 | STEM | 304 | |
| 6 | STEM PACKING | PTFE | |
| 7 | O-RING | NBR | |
| 8 | STEM SEAT | PTFE | |
| 9 | GLAND | 304 | |
| 10 | SPRING WASHERS | 301 | |
| 11 | NUT | 304 | |
| 12 | WASHER | 304 | |
| 13 | HANDLE SLEEVE | PVC | |
| 14 | HANDLE | 304 | |
| 15 | LOCKING | 304 | |
| 16 | BOLT | 304 | |
| 17 | BOLT NUT | 304 | |
| 18 | BOLT WASHER | 304 | |
| 19 | BODY PACKING | PTFE |
| DIMENSIONS (mm) | |||||||||
| SIZE \ ITEM | D | P | A | B | N-H | W | H | L | ISO5211 |
| DN15 | 15 | 9 | 36 | 72 | 4-M12 | 140 | 78 | 42 | F04/03 |
| DN20 | 20 | 9 | 36 | 42 | 4-M12 | 140 | 84 | 44 | F04/03 |
| DN25 | 25 | 11 | 42 | 50 | 4-M12 | 152 | 93 | 50 | F04/03 |
| DN32 | 32 | 11 | 42 | 50 | 4-M16 | 152 | 105 | 60 | F04/03 |
| DN40 | 40 | 14 | 50 | 70 | 4-M16 | 188 | 112 | 65 | F05/04 |
| DN50 | 50 | 14 | 50 | 70 | 4-M16 | 188 | 120 | 80 | F05/04 |
| DN65 | 65 | 17 | 70 | 102 | 4-M16 | 230 | 145 | 113 | F07/05 |
| DN80 | 76 | 17 | 70 | 102 | 8-M16 | 230 | 155 | 120 | F07/05 |
| DN100 | 94 | 22 | 102 | 102 | 8-M16 | 230 | 189 | 154 | F10 |
Product Details
1PC Wafer Flanged Ball Valve With Mouting Pad (DIN)
Material：304, 316, 1.4308, 1.4408, CF8, CF8M, WCB
Model：1PC, ISO5211 mounting pad
Connetion：Flange
Medium：Water, Oil, Gas
Pressure: PN16 Full Port
Investment Casting
Blow-out-Proof Stem
PED97/23/PE(CE0036) Approved
Anti-Static device (option)
Design:EN12516
Locking Device Handle (option)
End Flange:DIN2542-DIN2545
Inspection Testing:API1598,EN12266
